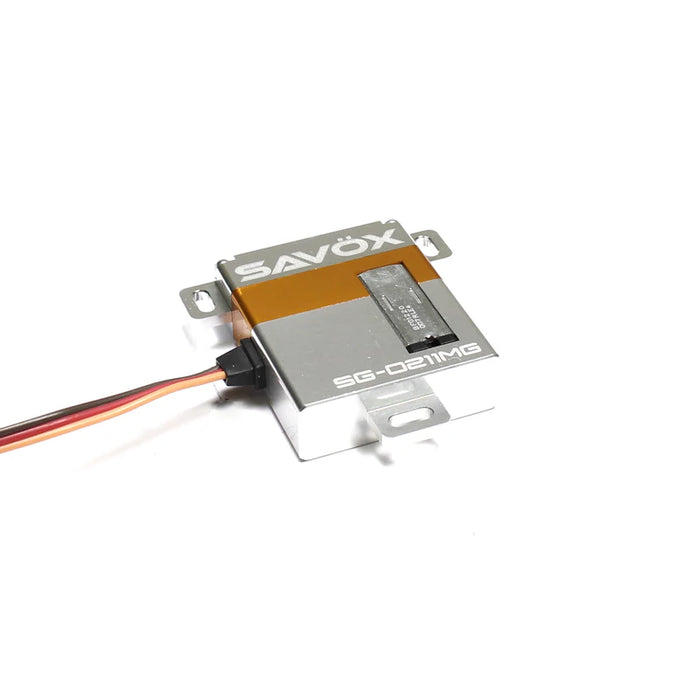

Savox SG0211MG High Torque Metal Case Digital Glider Servo

The SG-0211MG is specifically designed for glider and sailplane applications. With its unique case design, it is meant to be mounted in the slim specifications of wings.

FEATURES:

• Metal Gear train for extended life and durability
• Special design for glider applications
• Special design for glider applications
• All aluminum case for secure mounting

SPECIFICATIONS:

• Torque @4.8v - 6.0kg/83.3oz-in
• Torque @6v - 8.0kg/111.1oz-in
• Speed @4.8v - 0.16 sec/60 deg
• Speed @6v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
• Weight: 29g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 120mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 1500mA @4.8 V, 1900mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 165° (800 → 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
