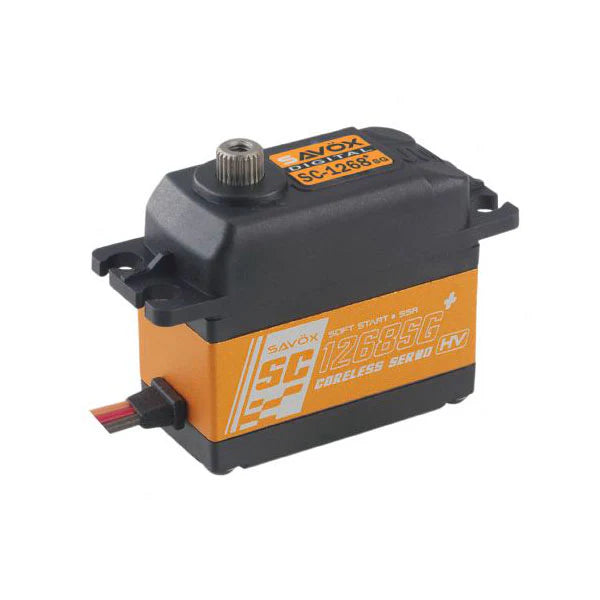

Savox SC1268SGP High Torque Digital Servo with Soft Start

The SC-1268SGP is a high torque servo that delivers when called upon due to it's strong output and durable gear train.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Super strong and precision made unique steel gears provide durability and survive heavy use
• Capable of HV operation
• Great torque from a standard size
• Ideal for 1/8 buggies, and other applications desiring high amounts of power
• "Plus" series servos feature Soft Start and Sanwa SSR compatibility

SPECIFICATIONS:

• Torque @ 6v - 15.0kg/208.3oz-in
• Torque @ 7.4v - 25.0kg/347.2oz-in
• Speed @ 6v - 0.13 sec/60 deg
• Speed @ 7.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 62.0g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
