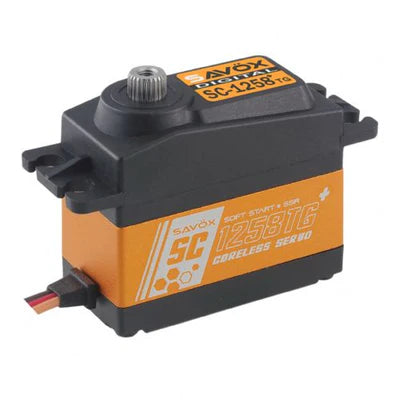

Savox SC1258TGP Standard Size Coreless Digital Servo with Soft Start

The SC1258TG Plus is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation. It is ideal for applications requiring high speed.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Extremely strong titanium gears ensure long-life, durability, and light weight
• Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies
• Aluminum middle case allows for cooler operating temperatures

SPECIFICATIONS:

• Torque @ 4.8v - 9.6kg/133.3oz-in
• Torque @ 6v - 12.0kg166.6oz-in
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.08 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 64g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
