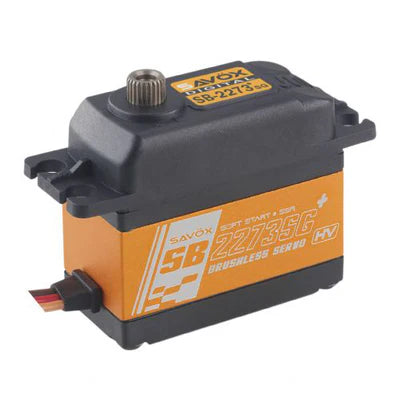

Savox SB2273SGP High Voltage Brushless Digital Servo with Soft Start

The Savox SA-2273SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Unique steel gear train
• Capable of HV operation
• Brushless motor for smooth operation and efficiency
• Ideal for 1/8 buggies and large scale aircraft

SPECIFICATIONS:

• Torque @ 6v - 23.0kg/319.4oz-in
• Torque @ 7.4v - 28.0kg/388.8oz-in
• Speed @ 6v - 0.12 sec/60 deg
• Speed @ 7.4v - 0.095 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 69.0g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
