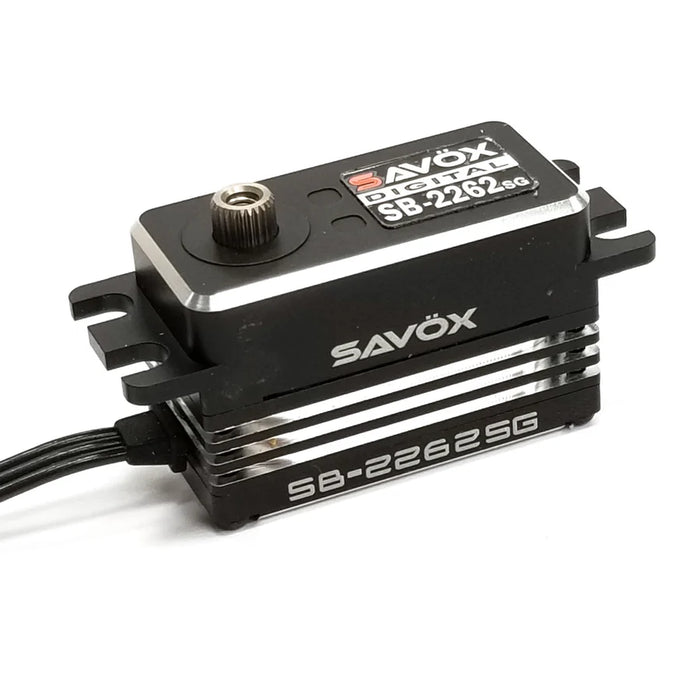

Savox SB2262SG Monster Torque Low Profile Steel Gear Servo

The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

FEATURES:

• Full Aluminum Case
• 2 Precision Ball Bearings
• Metal Gears

SPECIFICATIONS:

• Torque @ 6.0v - 18kg / 250oz-in
• Speed @ 6.0v - 0.10 sec / 60deg
• Torque @ 7.4v - 25kg / 347.2oz-in
• Speed @ 7.4v - 0.08 sec / 60deg
• Torque @ 8.4v - 32kg / 444.4oz-in
• Speed @ 8.4v - 0.065 sec / 60deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.75
• Weight: 62g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
