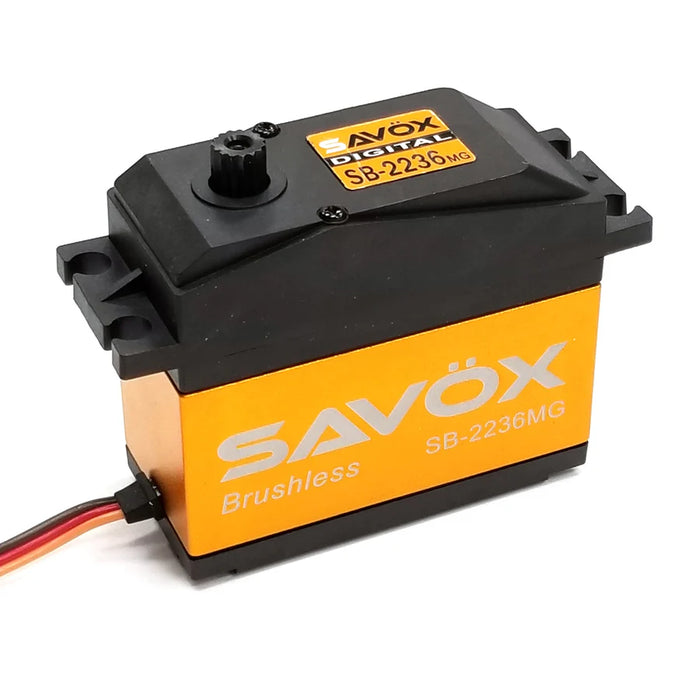

Savox SB2236MG 1/5 Scale High Voltage Brushless Digital Servo

1/5 Scale High Voltage Brushless Digital Servo

FEATURES:

• Ideal for 1/5 scale off road and large scale aircraft applications
• Strong metal gear train for added durability
• Extremely high torque output
• Capable of operating on high voltage

SPECIFICATIONS:

• Torque @ 6.0v - 32.0kg/444oz-in
• Torque @ 7.4v - 40.0kg/555oz-in
• Speed @ 6.0v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 65.8 x 30.0 x 57.4
• Weight: 225.0g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 8500mA @6.0V, 10500mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 +/- 5mm
• Output Gear Spline: 15 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
