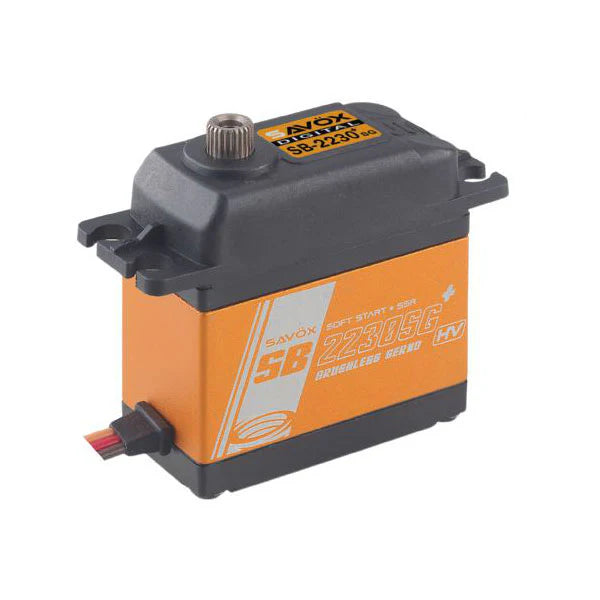

Savox SB2230SGP High Voltage Brushless Digital Servo (Tall) with Soft Start

The Savox SB-2230SG Plus Monster Torque Brushless servo features a slightly taller case design, and contains unique steel gears to accommodate the massive output torque.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Ideal for giant scale aircraft, monster truck, and 1/8 scale off road
• Brushless motor provides longer life and cooler operating temps
• Extremely strong unique steel gears ensure long-life and durability

SPECIFICATIONS:

• Torque/Speed @ 6v - 36.0kg/499.9oz-in, 0.16 sec/60 deg
• Torque/Speed @ 7.4v - 42.0kg/583.3oz-in, 0.13 sec/60 deg
• Torque/Speed @ 8.4v - 55.0kg/763.8oz-in, 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
• Weight: 84g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
