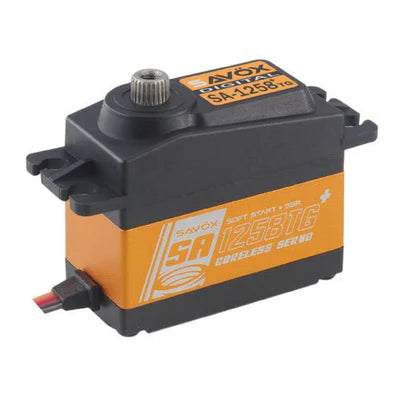

Savox SA1258TGP Standard Size Coreless Digital Servo with Soft Start

The SA-1258TG Plus servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

"Plus" models feature Soft Start and Sanwa SSR Compatibility.

FEATURES:

• Extremely strong titanium gears ensure long-life, durability, and light weight.
• Aluminum middle case allows for cooler operating temperatures.
• Minimized backlash for precision aerobatic airplane use.
• Soft Start and Sanwa SSR Compatibility

SPECIFICATIONS:

• Torque @ 4.8v - 9.6kg-cm/133.3oz-in
• Torque @ 6v - 12.0kg-cm/166.6oz-in
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.08 sec/60 deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
• Weight: 64g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
