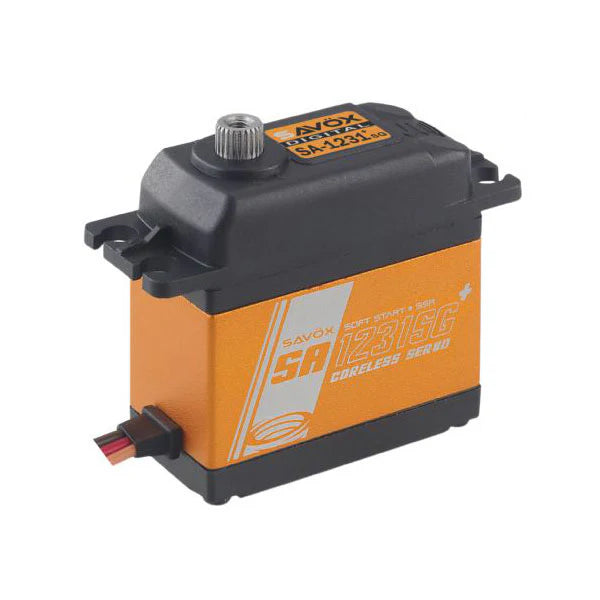

Savox SA1231SGP Coreless Digital Servo

The Savox SA-1231SG+ High Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Extremely strong unique steel gears ensure long-life and durability
• Minimized backlash designed for aircraft use, but great for Monster Truck and crawling use
• Aluminum middle case to help with cooler operating temperatures
• Slightly taller case design

SPECIFICATIONS:

• Torque @ 4.8V - 28.0kg / 388.8oz-in
• Torque @ 6V - 32.0kg / 444.4oz-in
• Speed @ 4.8V - 0.18 sec / 60 deg
• Speed @ 6V - 0.14 sec / 60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9
• Weight: 79g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @4.8V, 250mA @6.0V
• Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
• Wire Length: 200 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
