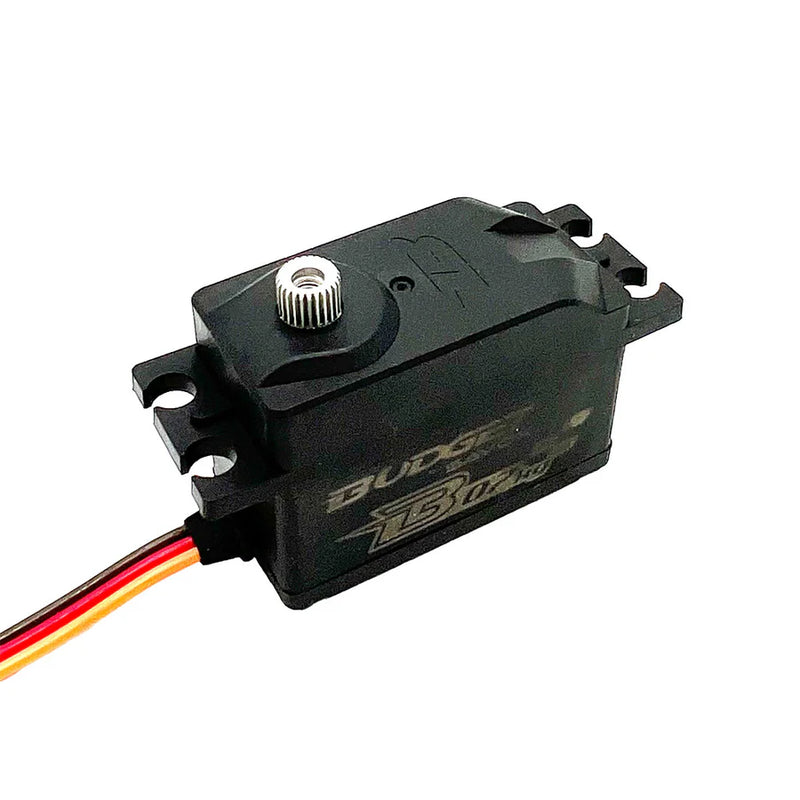

Savox B07KG Standard Size Lower Profile Budget Analog Servo with Metal Gears

"Budget by Savox" analog servos offer the same level of quality as the digital servo line, but at a much lower price, making them a great value!

SPECIFICATIONS:

• Torque @ 6v - 7.0kg / 97.2oz-in
• Speed @ 6v - 0.16 sec / 60 deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 30.9
• Weight: 46.0g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 220mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 4800mA @4.8V, 6000mA @6.0V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 250 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1400 µ second
• Pulse Width Range: 700 → 2100 µ second
• Maximum Travel: Appx 165° (700 → 2100 µ second)
• Refresh Rate: 333Hz
• Motor Type: Brushed
