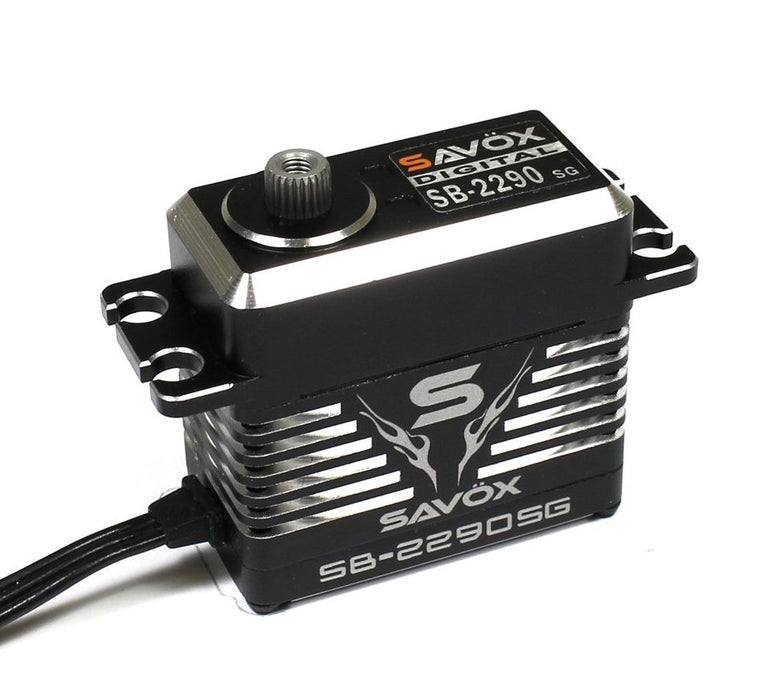

Savox 2290SG Monster Torque Brushless Servo Black Edition

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

FEATURES:

• Full Aluminum Case
• 3 Precision Ball Bearings
• Unique steel gears

SPECIFICATIONS:

• Torque @ 6v - 40.0kg/555.5oz-in
• Torque @ 7.4v - 50.0kg/694.4oz-in
• Torque @ 8.4v - 65.0kg/902.7oz-in
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
