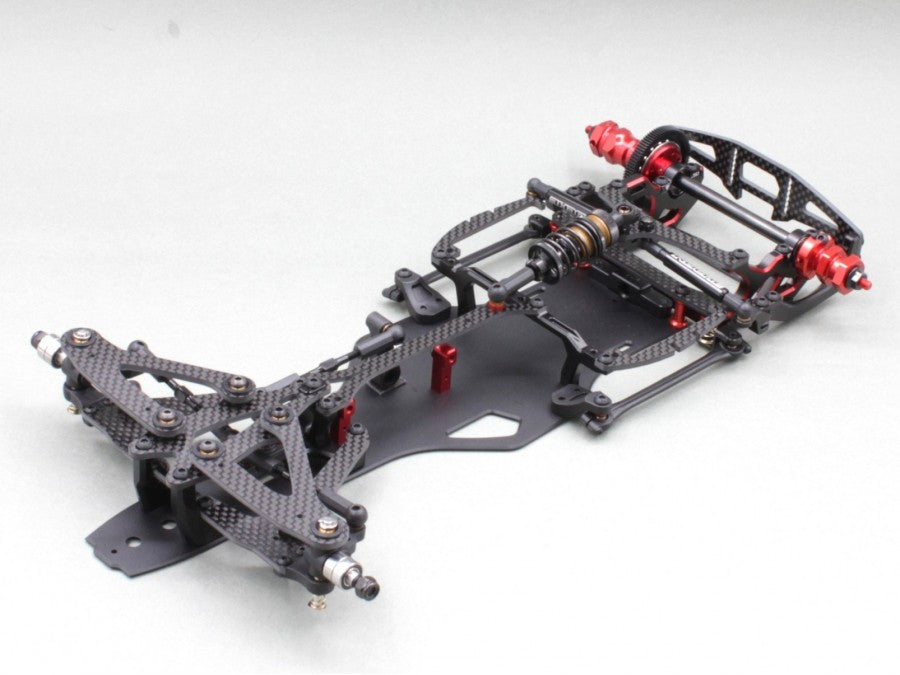

Roche 152020 Rapide F1 EVO2 1/10 Aluminum Chassis Competition Car Kit (USA Spec)

ROCHE - Rapide F1 EVO2 Features

• New design graphite main chassis, lower pod plate, rear pod plate, front lower arm, caster adjust plate, top deck, chassis brace, upper pod plate, battery holder.
• New design chassis allow to adjusts the wheelbase of the front suspension in +/- 5mm.
• New design graphite top deck to improve chassis flex and chassis support when on powering. Two damper positions selectable on top deck.
• New design 7075 aluminum front bulkhead to connect upper and lower arm.
• New design 7075 aluminum servo mount. Servo position changeable for weight balance.
• New design steering arm mount, easy ackerman adjustment.
• New design camber and caster adjust plate, five difference camber angle and four angle caster angle selectable.
• New design DVS-V3 center damper. Quick rear droop adjustment.
• New design more friction side tube.
• New design motor mount and rear bulkhead. Red/Black two tones anodize.
• New design center pivot system. High / lower pivot position selectable.
• New designed independent wing mount system. Seven rear wing position selectable
• New design o-ring type battery mounting chassis brace. 3 position forward / backward selectable.
• 2.25mm USA high grade graphite materials and 2.0mm high grade 7075 aluminum materials
• Narrow design main chassis and side link mount, reduce chassis scrubbing in high speed corners.
• 2.5mm USA high grade stiff graphite upper and lower suspension arms.
• Caster adjustable : 3.5/6.0/8.5/11 deg.
• Front camber adjustable.
• Ackerman adjustable.
• Chassis Wheelbase adjustable (+/-5mm).
• Low friction coating aluminum pivot balls and ball studs.
• Polished kingpin.
• Hard coated aluminum steering turnbuckle (M3x39mm)
• Big bore short center damper and 20mm short spring.
• Cross-chassis alignment battery placement
• 7075 aluminum easy adjust side spring holder
• 7075 aluminum motor mount and left rear bulkhead
• 7075 aluminum main shaft holder, precise adjustment ride height by spacers. +/-1mm forward/backward main shaft position adjustment.
• Rear wing position quick adjustment.
• High precision ball differential with 5mm thrust ball bearing as more smooth and reliable.
• Clamp type aluminum left wheel rear adaptor.
• Weight reduced steel main shaft.

*Products maybe subject to change without notice
