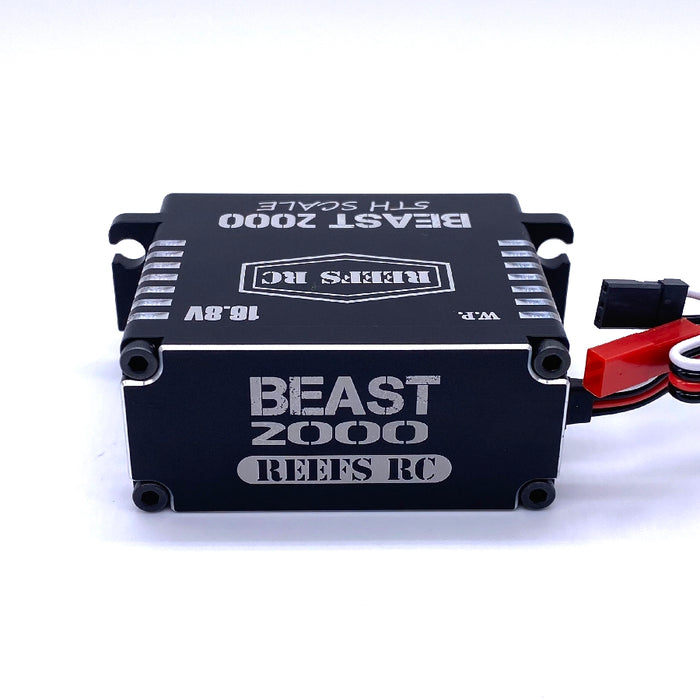

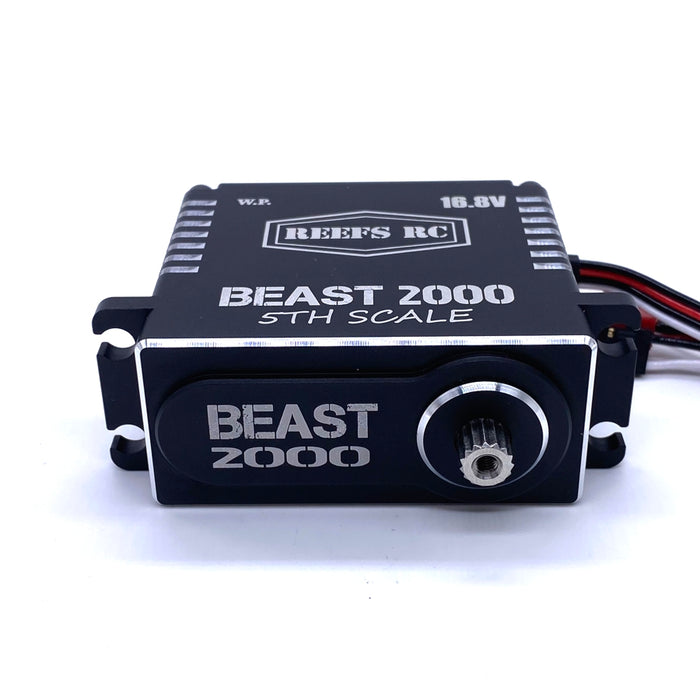

Reefs RC (103) Beast 2000 5th Scale Waterproof Servo

High Torque High Speed Brushless Servo

FEATURES:

• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Voltage 7.4V - 16.8V
• Mechanical Angle: No Limit
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 5 Ball Bearings /
• Weight: 10oz / 285g / Wires: 22AWG
• Dimension: 2.59 x 1.18 x 2.32 (LWH)
• Torque: 1000oz @ 10v/ 1250oz @11.1v/ 1450oz @12v / 2000 @ 16.8v
• Speed: .10sec @10v/.11sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
• Spline: 15T / Dead Band Width: 2uSec

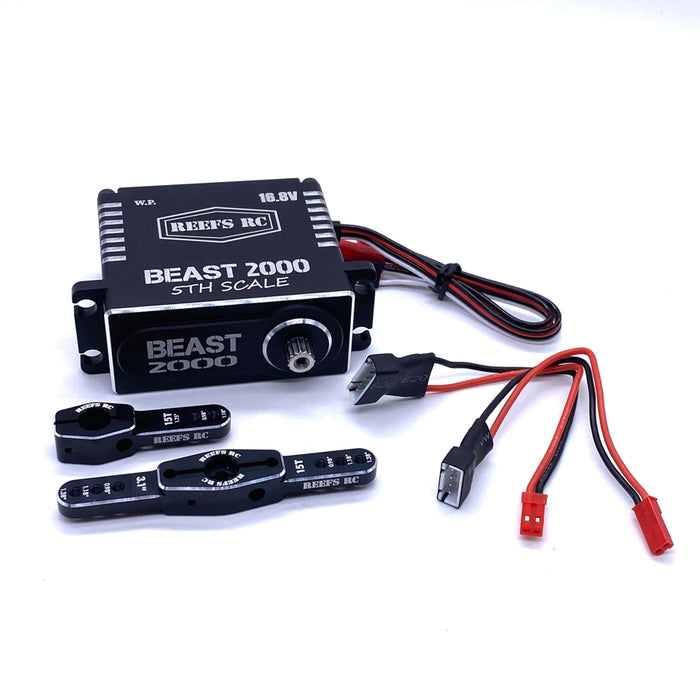

INCLUDES:

• REEFS SINGLE HORN
• REEFS DOUBLE HORN
• 3S & 4S CONNECTOR
• (1) Servo Horn Screw 3.5x8mm
• (3) 3x16mm Cap Head Screws for end of horns.
• (4) 2mm Horn Clamping Cap Head Screws
