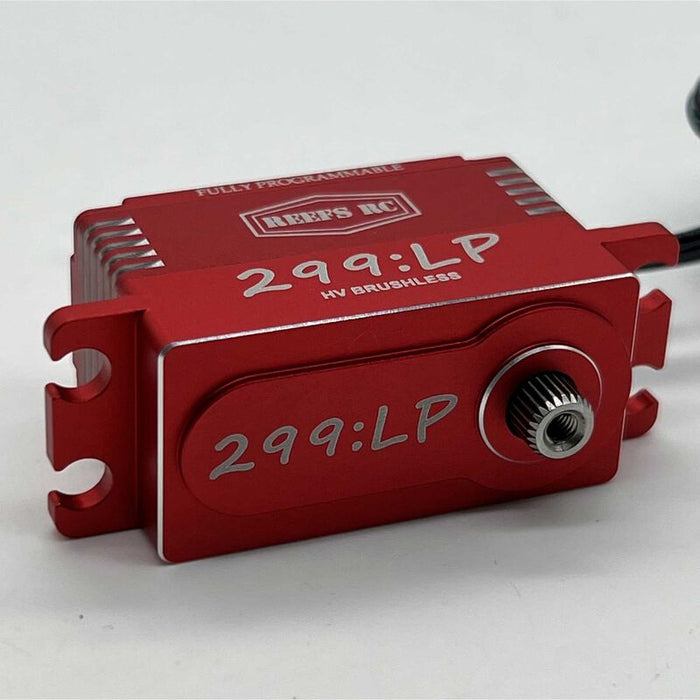

REEFS RC 299LP Low Profile High Speed High Torque Servo

Special Edition Red

FEATURES:

• High Torque High Speed Brushless Servo
• Water resistant
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable w/ REEFS Software
• REEFS LINK required for Programming

SPECIFICATIONS:

• Product Length: 1.6" (41 mm)
• Servo Operating Voltage: 4.8 - 8.4V (HV)
• Bearing: 2 Ball Bearings
• Gear Type: Metal
• Maximum Servo Speed: 0.050-0.099 sec
• Product Width: 0.79" (20 mm)
• Torque: 278oz @ 6v/ 299oz @7.4v/ 313oz @8.4v
• Max Servo Torque: 200-349 oz-in
• Product Weight: 2.0oz
• Spline Count: 25 - Tooth
• Deadband: 2¦Ìs
• Product Height: 1" (25 mm)
