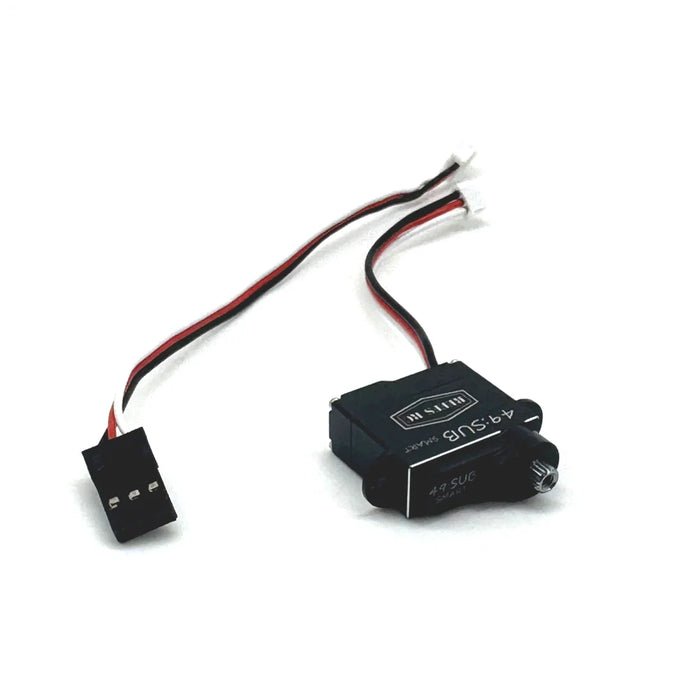

Reefs RC (207) 49 SUB Micro SMART Programmable Servo or Winch

49 SUB Micro SMART Programmable Servo or Winch

FEATURES:

• High Torque High Speed
• Servo / Winch
• Military Grade Construction
• Pulse Width Modulation Control
• SMART Chip Technology
• REEFS LINK required for Programming
• (Optional) Comes as Servo

SPECIFICATIONS:

• Voltage 4.8v - 8.4v
• Internal: Metal Gears
• CNC Aluminum Casing
• Sealed Bearing
• Temp Rate: -15C°~ +70C
• Operating Travel: 180°±10°
• Mechanical Angle: No Limit
• Motor Drive: IC Drive
• Weight: .24oz / 7g
• 20 x 8 x 17.8 mm (LWH)
• Torque:
  • 37oz @ 6.0v
  • 43oz @ 7.4v
  • 49oz @ 8.4v
• Speed:
  • .075 sec @ 6.0v
  • .058 sec @ 7.4v
  • .05 sec @ 8.4v
• Spline: 20Tφ4.0mm
• Dead Band Width: 2µs
• BEC Not Required, Recommended for Max Performance

Note: 49SubMicro Tabs are recommended for multi use installs.
