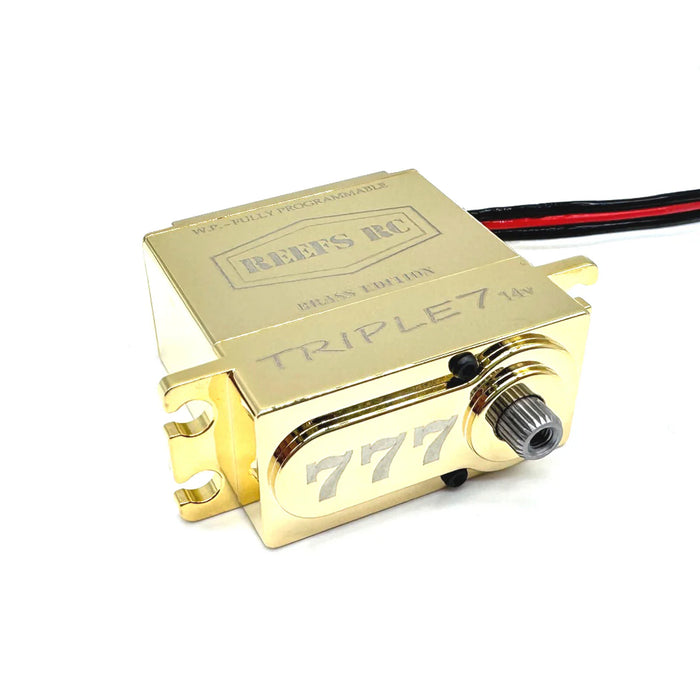

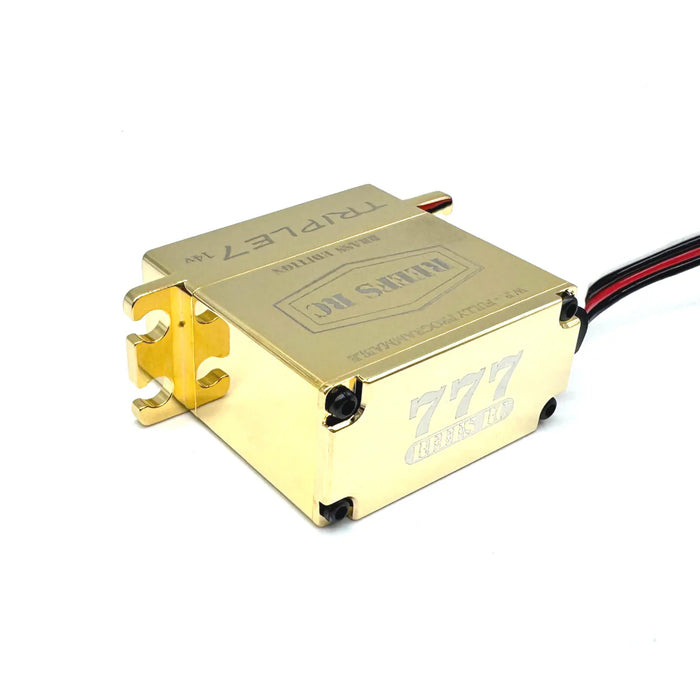

Reefs RC (169) Triple7 Brass Edition Programmable Servo

Reefs' first direct power servo gets a makeover. Still featuring the same high performance stats as the original, the Triple7 has both the speed and power to impress, and can be programmed for even more with REEFS Link.

Fully submersible IP67 Waterproof rating. Highly efficient (PWM) Pulse Width Modulation control along with Steel gears and a Magnetic angle sensor make this servo super smooth, precise, and robust.

Best part about the High Voltage capability is that you can run your 3S battery straight to it!

The Triple 7 Brass ULTRA Finish edition is ready to be showcased in your next build as some serious bling and as some substantial weight right were you want it.

SPECIFICATIONS:

• High Torque High Speed Brushless Servo
• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable w/ REEFS Software (REEFS LINK required)
• Voltage: 10V - 14V MAX
• Internal: Steel Gears
• Structure: CNC Brass Casing with ULTRA Finish
• Bearing Type: 3 Ball Bearings
• Weight: 5.65oz/160g (Compare to Triple7 aluminum: 3.12oz/88.5g)
• Dimensions: 1.57 x .78 x 1.63 (LWH)
• Torque: 666oz @11.1v/ 700oz @12.0v/ 777oz @14v
• Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v
• Spline: 25T
• Dead Band Width: 2μs
