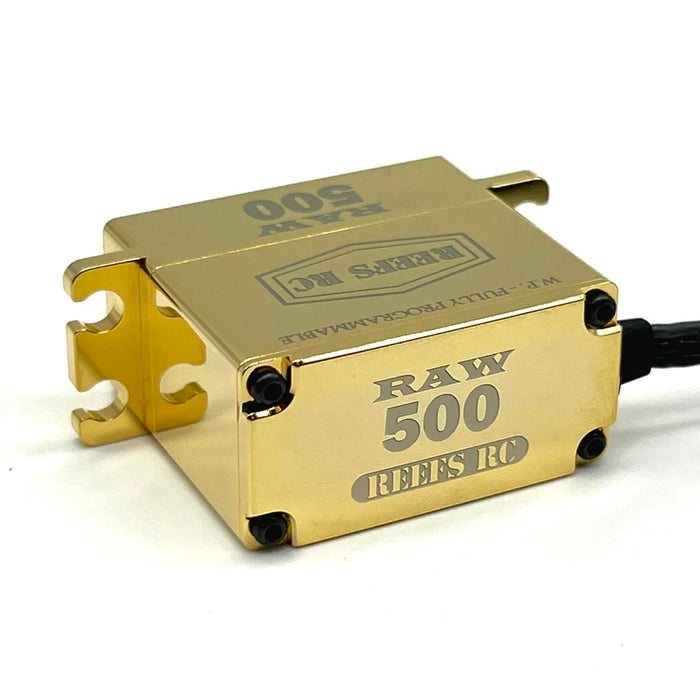

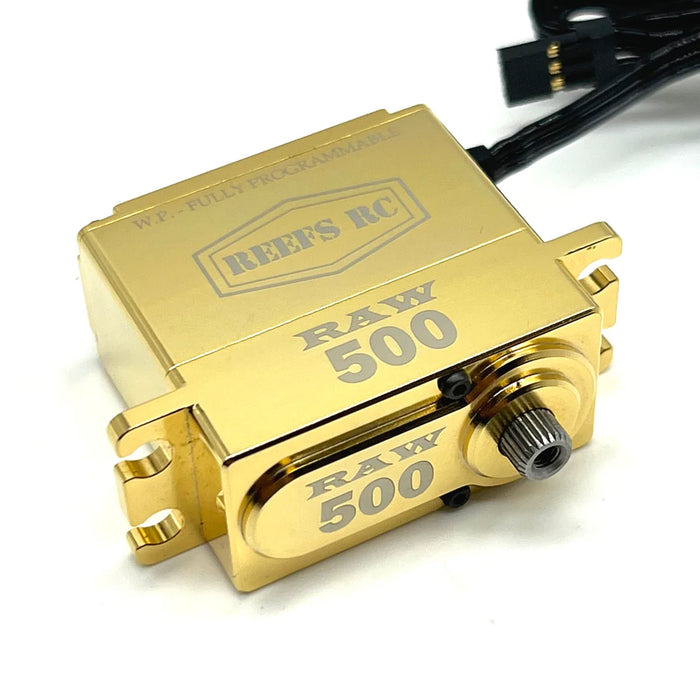

Reefs RC (159) RAW500 Servo Brass Edition Programmable Servo

RAW 500 Brass Edition

FEATURES:

• FULLY PROGRAMMABLE
• High Torque High Speed Brushless Servo
• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable w/ REEFS Software
• REEFS LINK required for Programming
• Voltage 4.8V - 8.4V / Bearing Type: 2 Ball Bearings
• Internal: Steel Gears / CNC Brass Casing with ULTRA Finish
• Weight: 5.2oz / 145.2G
• Dimension: 1.57 x .79 x 1.5 (LWH)
• Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
• Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
• Spline: 25T / Dead Band Width: 2μs
• BEC Not Req. Recommended for max performance.
• Unload Current: 320mA @ 6.0V / 360mA @ 7.4V / 400mA @ 8.4V
• Loading Current: 4000mA @ 6.0V / 4300mA @ 7.4V / 4600mA @ 8.4V
