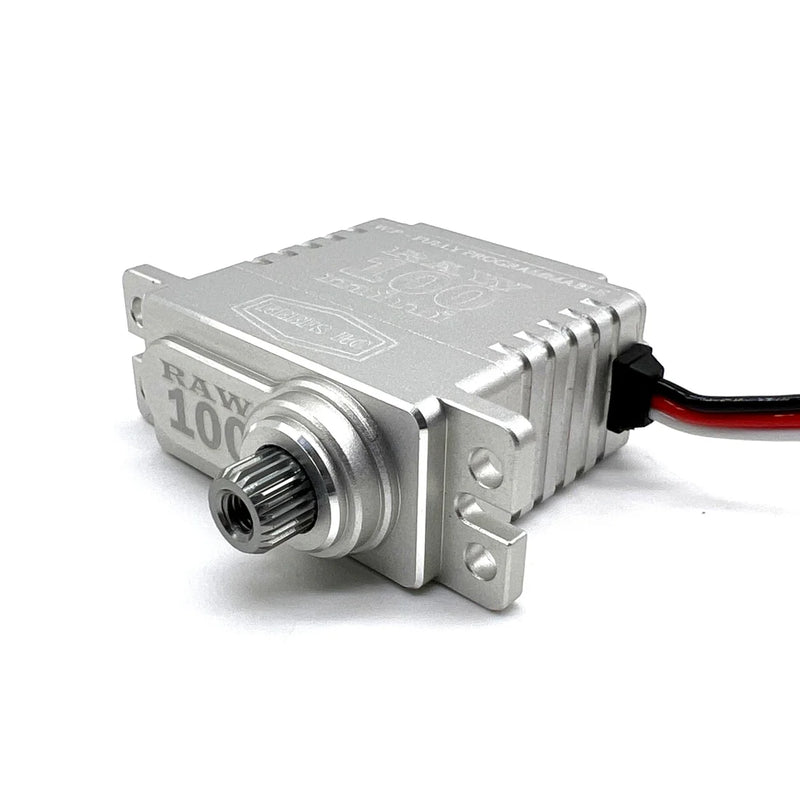

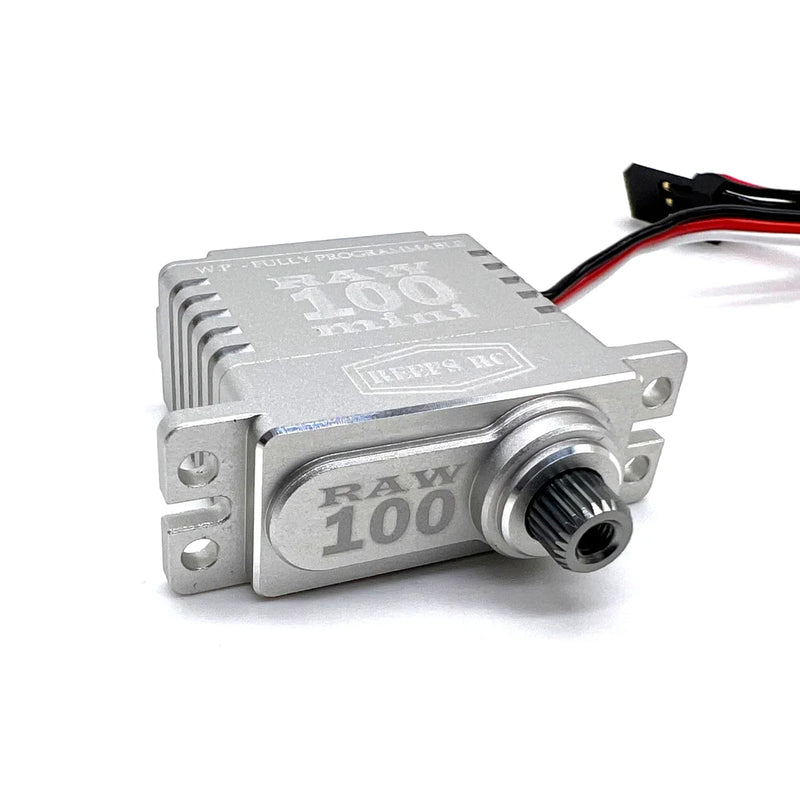

REEFS RC (134) RAW100 Mini Programmable Waterproof Servo

FEATURES:

• High Torque High Speed
• Mini Coreless Servo
• SUBMARINE WATERPROOF
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• REEFS LINK required for Programming (Optional)

SPECIFICATIONS:

• Voltage: 6v-8.4v
• All Metal Gears
• CNC Aluminum Casing w/ Heat Sink
• Bearing Type: 2BB
• Temp Rate: -15C°~ +70C
• Weight: 1.05oz / 30g
• Dimension: (LWH)
  • 1.16 x .55 x 1.14 in
  • 29.5 x 14 x 29 mm
• Torque:
  • 85oz @ 6.0v
  • 95oz @ 7.4v
  • 103oz @ 8.4v
• Speed:
  • .11sec @ 6.0v
  • .10sec @ 7.4v
  • .08sec @ 8.4v
• Spline: 25T Standard
• Dead Band Width: 2μs
• Unload Current:
  • 180mA @ 4.8V 200mA @ 6.0V
  • 230mA @ 7.4V 260mA @ 8.4V
• Load Current:
  • 1200mA @ 4.8V 1400mA @ 6.0V
  • 1500mA @ 7.4V 1800mA @ 8.4V
• BEC: Not Required (Recommended for best performance)
