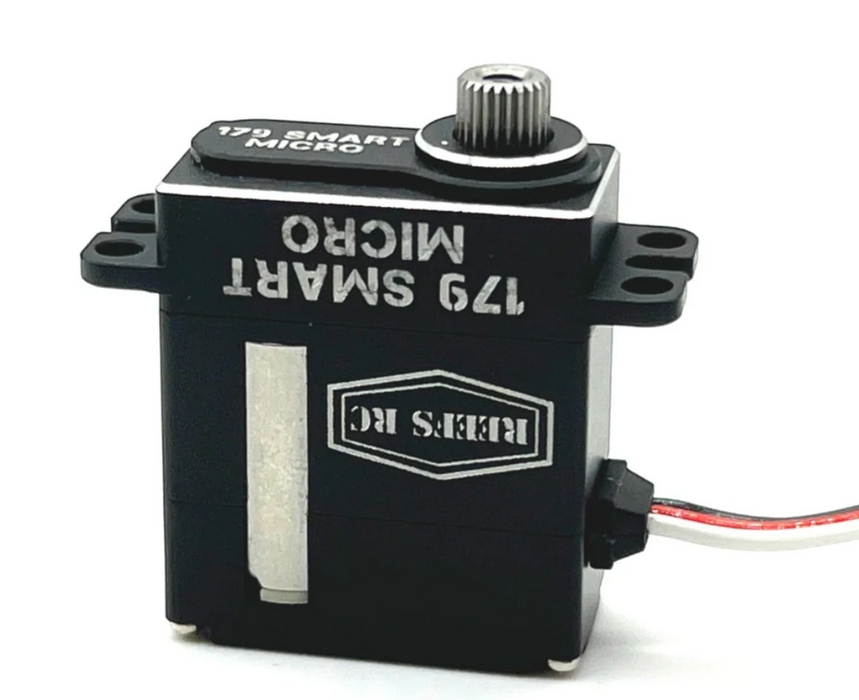

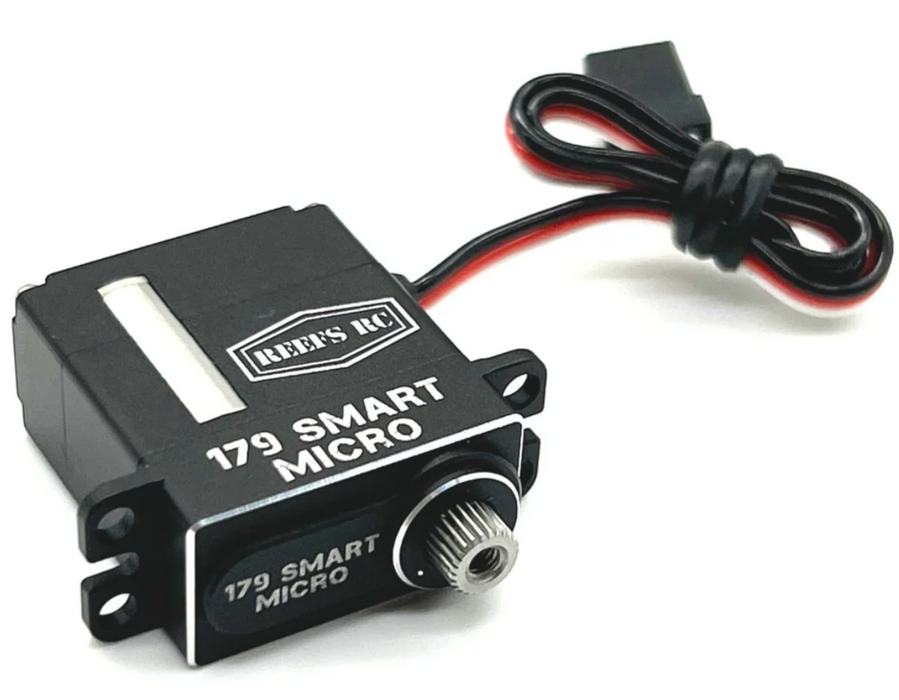

Reefs RC (129) 179 SMART Micro Programmable Waterproof Servo or Winch

With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.

SPECIFICATIONS:

• High Torque High Speed
• BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• REEFS LINK required for Programming
• (Optional) Comes as Servo
• Voltage 6-8.4 / Internal: Metal & Steel Gears
• CNC Aluminum Casing / Bearing Type: 2BB
• Temp Rate: -15C°~ +70C
• Weight: .74oz / 21g
• Dimension: (LWH)
  • .90 x .47 x 1.08 in
  • 23 x 12 x 27.5 mm
• Torque:
  • 135 oz @ 6.0v
  • 159 oz @ 7.4v
  • 179 oz @ 8.4v
• Speed:
  • .09 sec @ 6.0v
  • .07 sec @ 7.4v
  • .06 sec @ 8.4v
• Spline: 25T Micro
• Dead Band Width: 2μs
• Unload Current:
  • 150mA @ 4.8V
  • 180mA @ 6.0V
  • 240mA @ 7.4V
  • 300mA @ 8.4V
• Load Current:
  • 1600mA @ 4.8V
  • 2000mA @ 6.0V
  • 2200mA @ 7.4V
  • 2400mA @ 8.4V
