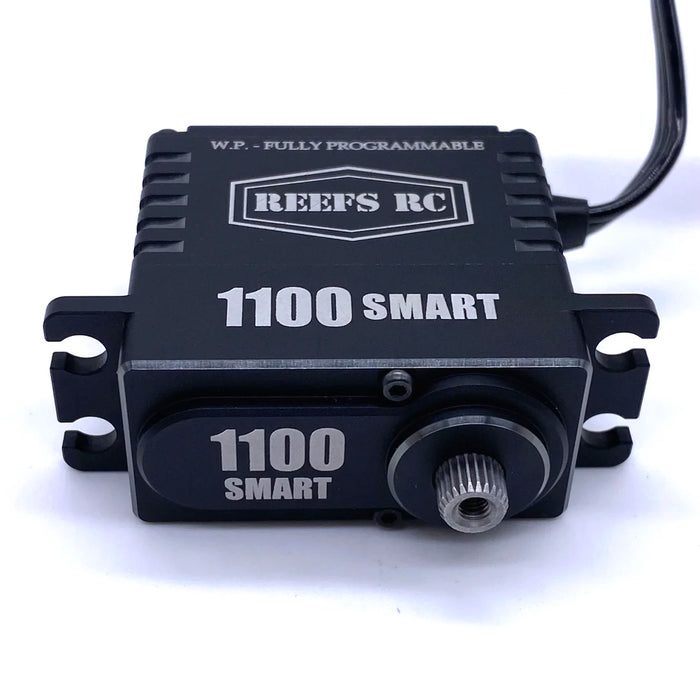

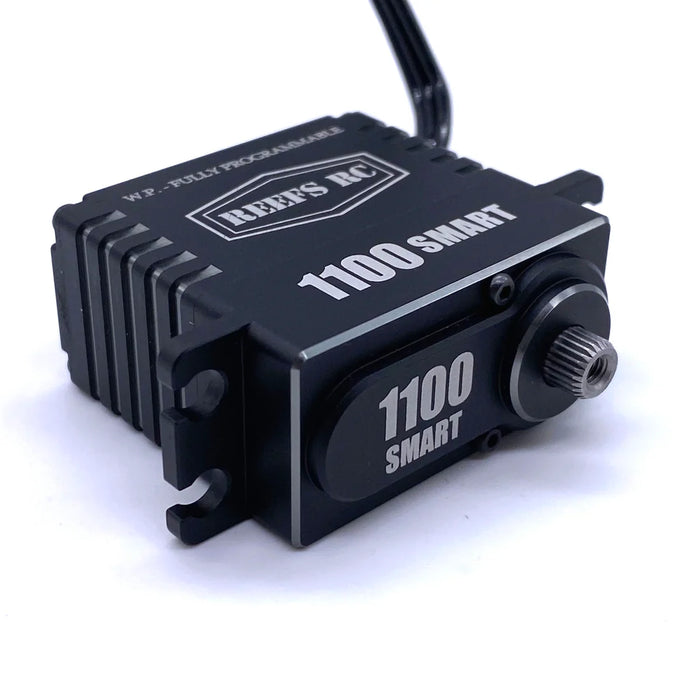

Reefs RC (119) 1100 Smart Programmable Waterproof Servo or Winch

SPECIFICATIONS:

• High Torque High Speed Brushless SERVO or WINCH
• Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK (Sold separately) and Software
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• 4 Pole Brushless Motor
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 4 Ball Bearings / Weight: 2.99oz
• Dimension: 1.57 x .79 x 1.5 (LWH)
• Torque:
  • 760oz @ 6v
  • 930oz @7.4v
  • 1100oz @8.4v
• Speed:
  • .16sec @6v
  • .13sec @7.4v
  • .12sec @8.4v
• Spline: 25T
• Dead Band Width: 2μs
• BEC Not Req. (Recommended for max performance)
• Unload Current:
  • 460mA @ 4.8V
  • 500mA @ 6.0V
  • 540mA @ 7.4V
  • 580mA @ 8.4V
• Load Current:
  • 5400mA @ 4.8V
  • 6000mA @ 6.0V
  • 6800mA @ 7.4V
  • 7500mA @ 8.4V
