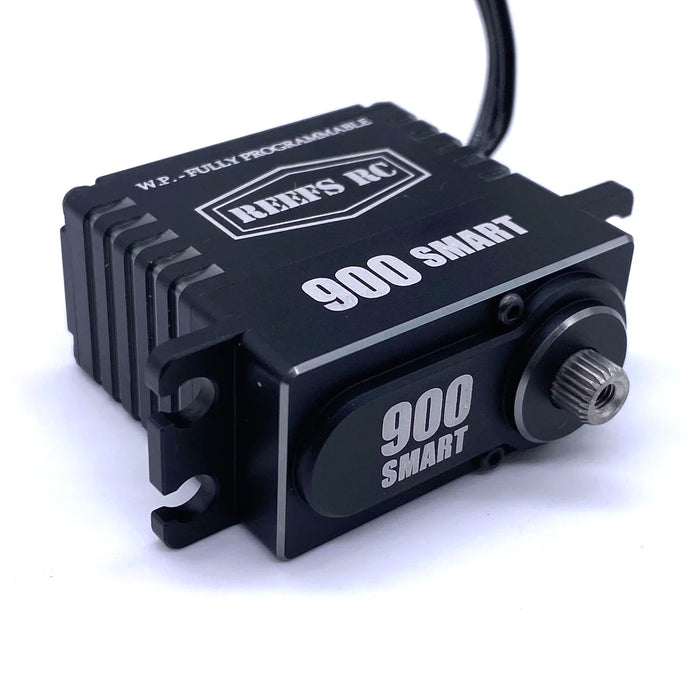

Reefs RC (118) 900 Smart Programmable Waterproof Servo or Winch

High Torque High Speed Brushless SERVO or WINCH

SPECIFICATIONS:

• Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• 4 Pole Brushless Motor
• REEFS LINK required for Programming
• Voltage 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 4 Ball Bearings / Weight: 2.99oz
• Dimension: 1.57 x .79 x 1.5 (LWH)
• Torque:
  • 720oz @ 6v
  • 830oz @7.4v
  • 940oz @8.4v
• Speed:
  • .13sec @6v
  • .12sec @7.4v
  • .10sec @8.4v
• Spline: 25T / Dead Band Width: 2μs
• BEC Not Req. Recommended for max performance
• Unload Current:
  • 460mA @ 4.8V
  • 500mA @ 6.0V
  • 540mA @ 7.4V
  • 580mA @ 8.4V
• Load Current:
  • 5000mA @ 4.8V
  • 5800mA @ 6.0V
  • 6800mA @ 7.4V
  • 7400mA @ 8.4V
