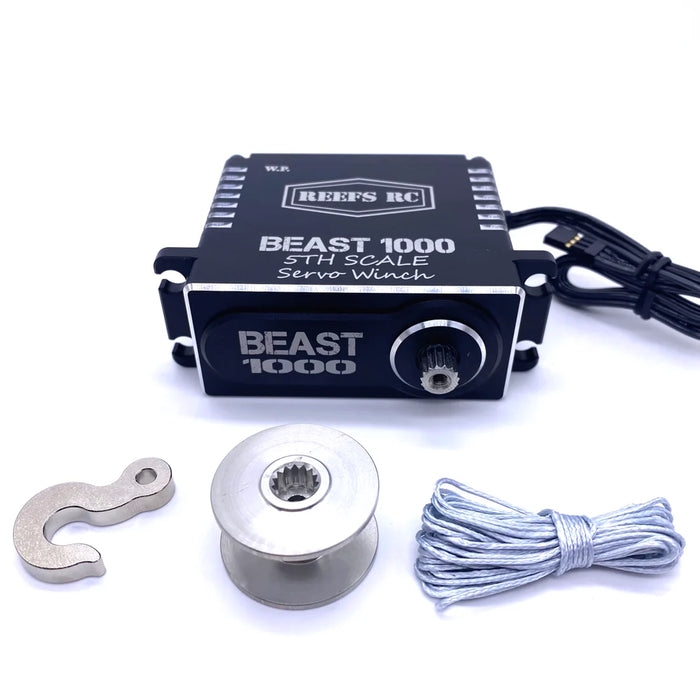

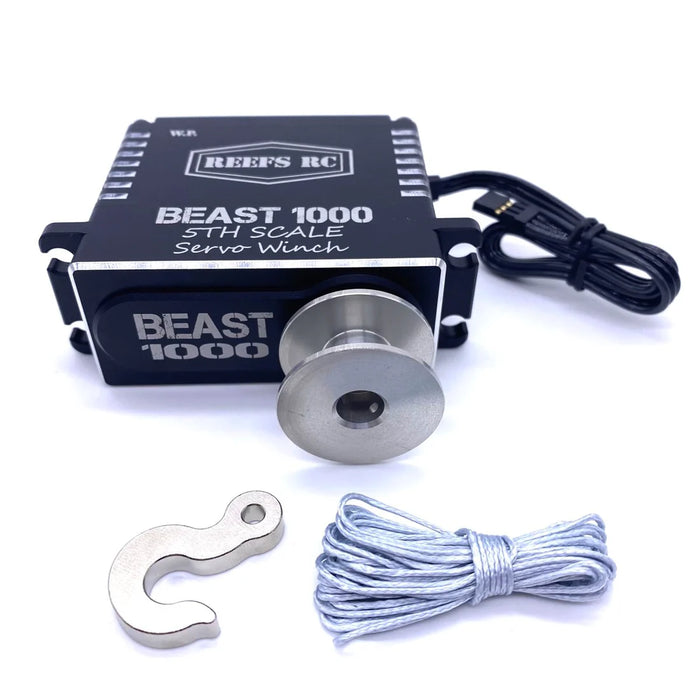

Reefs RC (116) Beast 1000 1/5th Scale Waterproof Servo Winch

High Torque High Speed Brushless Servo Winch

SPECIFICATIONS:

• W/: REEFS SPOOL / REEFS 5TH SCALE HOOK / SYN. LINE
• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Voltage: 4.8V - 8.4V
• Mechanical Angle: No Limit
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 5 Ball Bearings /
• Wires: 22AWG
• Weight: 10oz / 285g
• Dimension: 2.59 x 1.18 x 2.32 (LWH)
• Torque:
  • 800oz @ 6v
  • 900oz @7.4v
  • 1080oz @8.4v
• Speed:
  • .11sec @6v
  • .095sec @7.4v
  • .08sec @8.4v
• Spline: 15T
• Dead Band Width: 2uSec
• BEC Not Required (Recommended for max performance)
