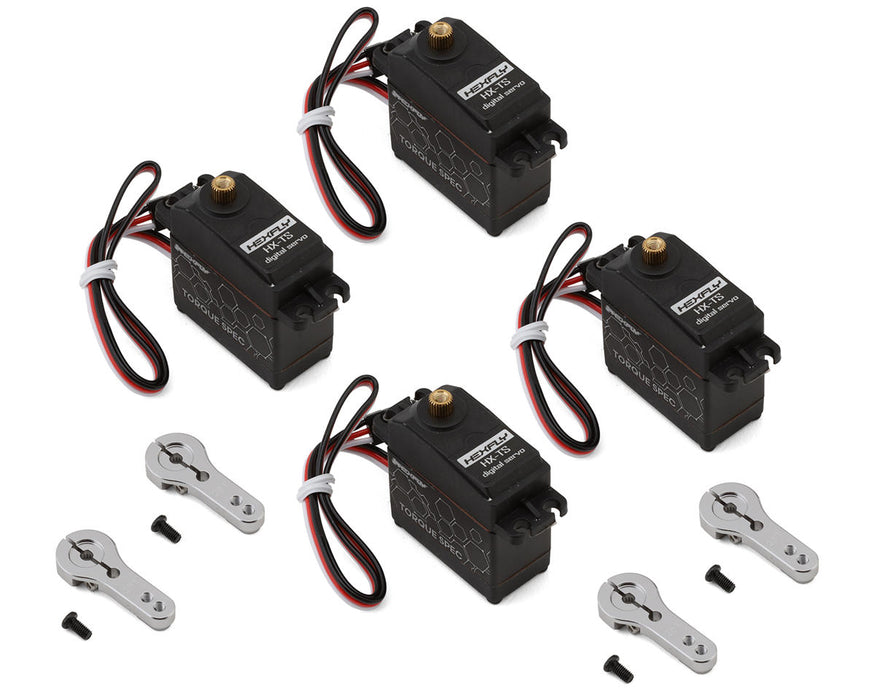

Redcat 21283 Torque Spec Servo 4-Pack

Includes Metal Servo Horns

The Redcat Torque Spec Servo 4-Pack features Hexfly HX-TS digital servos, designed to deliver powerful and reliable performance across a wide range of RC applications, including trucks, boats, planes, and robotics.

Each HX-TS servo is built with high-precision metal gears featuring hard anodizing for increased strength and wear resistance. This robust gear construction ensures long-term reliability under load, making the servos well-suited for heavy-duty and off-road RC applications. Additionally, the CNC-machined aluminum middle case improves heat dissipation during extended use, helping to maintain performance consistency under stress.

The Redcat Torque Spec servos are fully waterproof, allowing you to take your RC vehicle into wet, muddy, or snowy environments without sacrificing control or durability. Built from high-grade materials and sealed to resist moisture and debris, these servos are engineered to last even in the harshest conditions giving RC enthusiasts confidence in all-weather performance.

With fast response speeds ranging from 0.16 sec/60° at 5.0V to 0.12 sec/60° at 8.4V, and a working frequency between 50–333Hz, the HX-TS delivers responsive, accurate control. The 270° rotation range and 300mm connector wire provide flexibility in installation and movement, while the standard 40 x 20 x 40.5mm size and 67g weight ensure compatibility with most RC platforms. This 4-pack offers exceptional value for those looking to upgrade or build multiple high-performance RC models.

FEATURES:

• High Torque Output
• All-Metal Gears
• Waterproof Design
• Aluminum Center Case
• Wide Voltage Compatibility
• Fast Response Speed
• 270° Rotation
• Standard Size Fitment
• Long Connector Wire
• Great Value 4-Pack

SPECIFICATIONS:

• Application: 1/10
• Input Voltage: 5V-8.4V
• Speed:
  • @5.0V:: 0.16 sec/60°
  • @7.4V:: 0.14 sec/60°
  • @8.4V:: 0.12 sec/60°
• Torque::
  • @5.0V:: 347oz-in (25kg-cm)
  • @7.4V:: 486oz-in (35Kg-cm)
  • @8.4V:: 583oz-in (42Kg-cm)
• Motor: Digital Coreless
• Output Shaft: 25T
• Gear Material: Metal
• Dimensions Per Servo(LxWxH): 1.57x0.79x1.59in (40 x 20 x 40.5mm)
• Weight Per Servo: 0.67oz (19g)

INCLUDES:

• (4) Hexfly HX-TS Torque Spec digital Servos
• (4) Aluminum Servo Horn
• (4) Screws

Notes:

• Do not exceed 8.4 volts as it may damage the servo
• Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
