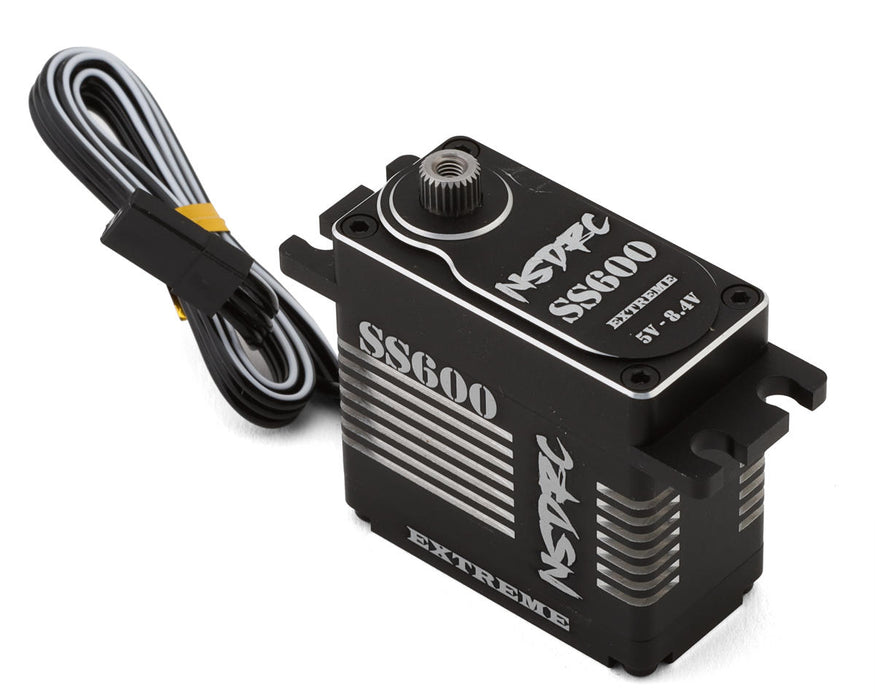

No Superior Designs RC NSDRC SS600HS SS600 Extreme Performance Waterproof Brushless High Voltage Servo
Experience the ultimate speed, power, and precision with the No Superior Designs RC SS600 Extreme Performance Servo!
The No Superior Designs RC SS600 Extreme Performance Servo is engineered for the ultimate speed, power and precision, making it a top choice for most 1/12 to 1/8 on-road or off-road bashing and racing applications. Delivering an impressive 687 oz-in of torque and a blazing-fast 0.04 sec/60° transit speed at 8.4V, this servo is built for demanding applications requiring extreme power and responsiveness. Its robust full CNC aluminum case enhances heat dissipation and durability, ensuring peak performance even under the most intense conditions. The industry-leading 5-gear stainless steel gear train provides exceptional strength and reliability, delivering ultra-smooth operation with superior precision!
Powered by a high-efficiency brushless motor and high-resolution digital circuitry, the SS600 offers next-level control, accuracy, and efficiency. Featuring dual ball bearings, a 25T spline, a waterproof-resistant aluminum case, and a potent hardened steel gear system, this servo is built to withstand rigorous use while maintaining flawless operation. With a wide operating voltage range (5.0V-8.4V) and high-speed digital signal processing (1500us/330Hz), it ensures ultra-responsive and precise movements in any high-speed or high-torque application. For enthusiasts looking for a high-end, performance-driven servo that excels in extreme conditions, the SS600 is the ultimate choice—delivering unparalleled speed, power, and reliability to push your RC experience to the next level.
FEATURES:
- Blazing fast 0.04 sec/60° transit speed at 8.4V
- Powerful 687 oz-in torque for extreme performance
- Strong CNC aluminum case for heat dissipation and durability
- Reliable 5-gear stainless steel gear train for smooth operation
- Efficient brushless motor for precision and longevity
- Responsive digital circuitry for ultra-fast signal processing
- Dual ball bearings for smooth and stable movement
- Water-resistant aluminum case for supreme protection
SPECIFICATIONS:
- Input Voltage: 5-8.4V
- Operating Speed @ 6.0V: 0.06 sec/60°
- Operating Speed @ 7.4V: 0.05 sec/60°
- Operating Speed @ 8.4V: 0.04 sec/60°
- Dynamic Torque @ 6.0V: 512 oz-in (12.8 Kg-cm)
- Dynamic Torque @ 7.4V: 600 oz-in (15.5 Kg-cm)
- Dynamic Torque @ 8.4V: 687 oz-in (17.6 Kg-cm)
- Water-Resistant Rating: IP66
- Gear Material: Steel
- Motor Type: Brushless
- Output Shaft Spline: 25T
- Dimensions: 1.57x0.78x1.52in (40x20x38.7mm)
- Weight: 3.22oz (91.5g)
Notes:
- Designed for use in Helicopters, race applications and planes. Not recommended for use in Rock Crawlers!
- A BEC with 5amp or higher output is highly recommended to get the full potential out of the SS600
