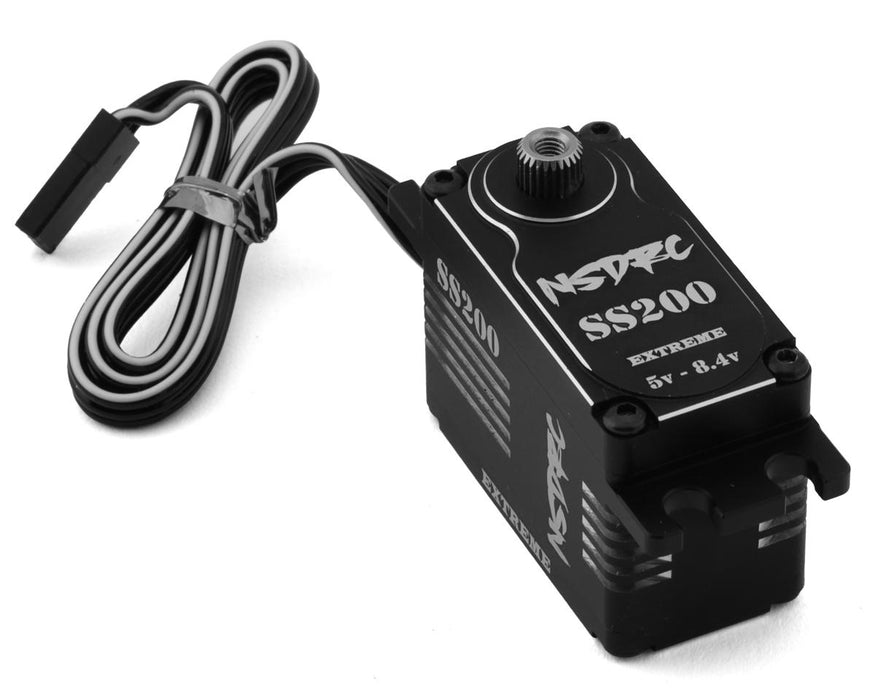

No Superior Designs RC NSDRC SS200 SS200 Extreme Performance Low Profile Servo

This is the SS200 Extreme Performance Low Pro Servo from No Superior Designs RC, designed to redefine speed, power, and precision in RC applications. With an astonishing 244 oz-in of torque and lightning-fast 0.033 transit speed at 8.4V, the SS200 is the top contender for 1/12 to 1/8 scale on/off-road racing, large scale planes, helicopters, low riders, robotics, and any other application requiring extreme speed, unparalleled responsiveness, and excellent power.

FEATURES:

• Extreme Performance: Delivers 244 oz-in of torque and 0.033 transit speed at 8.4V.
• Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability.
• Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions.
• High-Efficiency Motor: Powered by a high-quality brushless motor for next-level precision and performance.

SPECIFICATIONS:

• Speed:
• @6.0V: 0.045sec/60°
• @7.4V: 0.037sec/60°
• @8.4V: 0.033sec/60°
• Torque:
• @6.0V: 177oz-in (12.8kg-cm)
• @7.4V: 215oz-in (15.5kg-cm)
• @8.4V: 245oz-in (17.6kg-cm)
• Motor: Digital Coreless
• Operating Voltage: 5.0V-8.4V
• Dimensions(LxWxH): 1.57"x0.79"x1.06" (40x20x27mm)
• Weight: 2.30oz (65g)
• Operating Spline: 25T

INCLUDES:

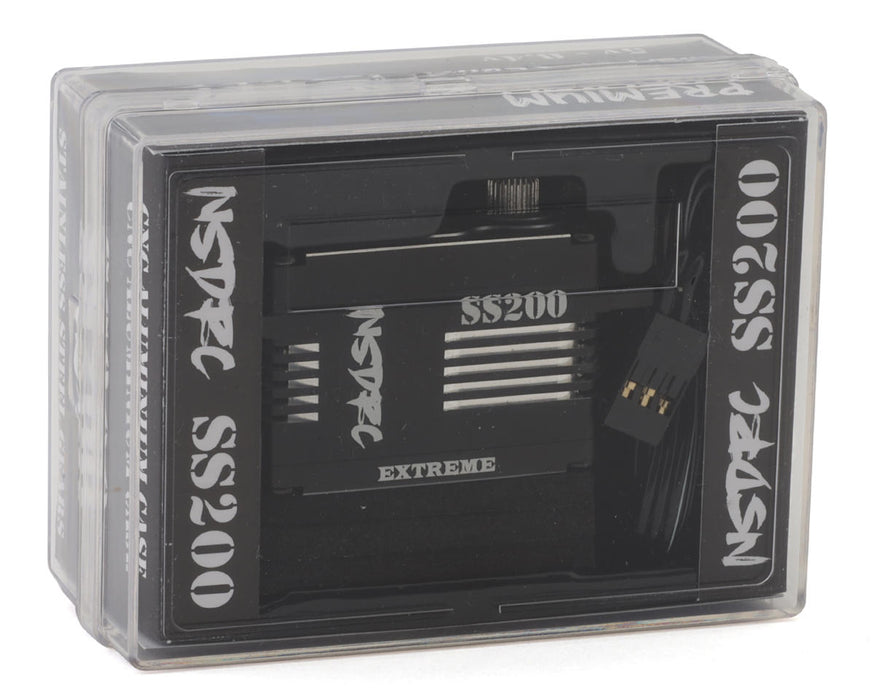

• (1) SS200 Extreme Performance Low Pro Servo

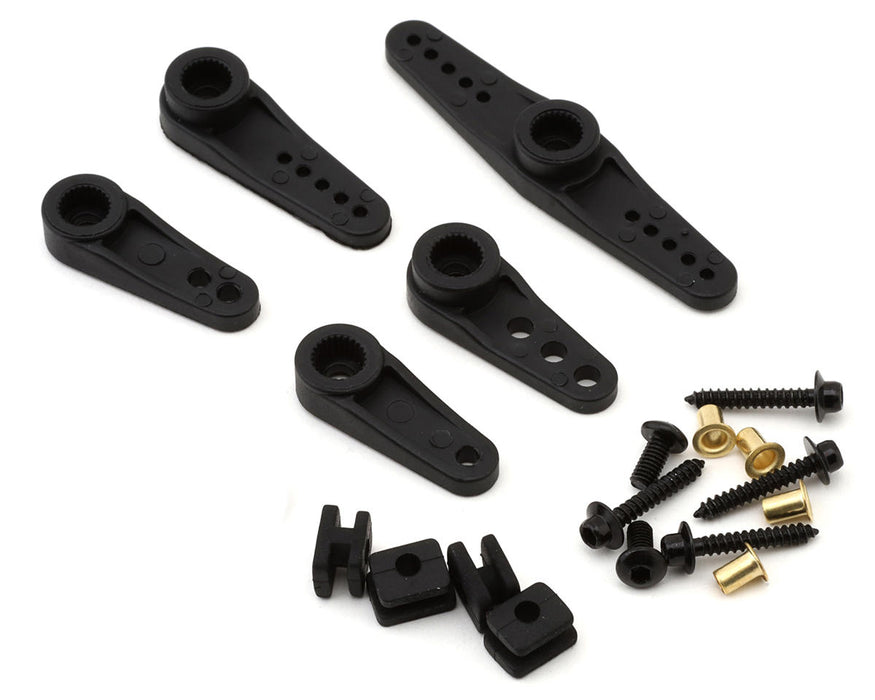

• Servo Horns and Mounting Hardware
