No Superior Designs RC NSDRC RS8V2R RS800 V2 Waterproof Brushless Aluminum Case High Voltage Servo

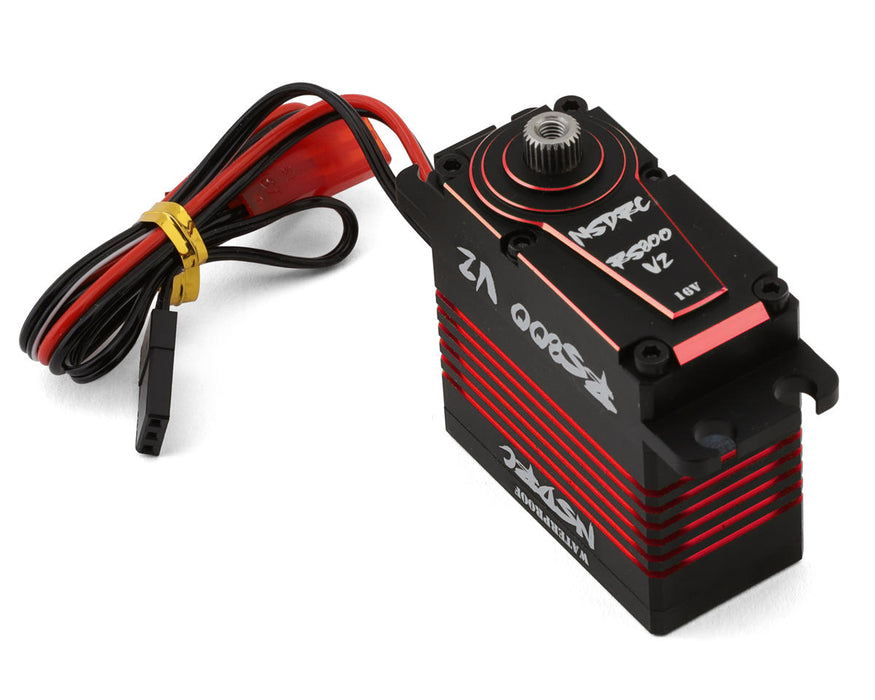

This is the RS800 V2 Special Edition Brushless Servo from No Superior Designs RC, designed with hardened 416 stainless steel gears, and a powerful 4-pole brushless motor to redefine speed, power, and precision in RC applications. With an astonishing 1100oz-in of torque and fast 0.10 transit speed at 16.8V, the RS800 V2 is the top contender for application requiring extreme torque, speed and durability in a brushless servo!

FEATURES:

• Extreme Performance: Delivers 1115oz-in of torque and 0.09 transit speed at 16.8V
• Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability
• Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions
• Waterproof Design: Perfect for outdoor tracks and trails!
• High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance

SPECIFICATIONS:

• Speed:
• @8.4V: 0.18sec/60°
• @12.6V: 0.14sec/60°
• @16.8V: 0.10sec/60°
• Torque:
• @8.4V: 600oz-in (43kg-cm)
• @12.6V: 900oz-in (65kg-cm)
• @16.8V: 1100oz-in (83kg-cm)
• Motor: Brushless
• Operating Voltage: 8.4V-16.8V
• Operating Temp.: 14F-122F (-10C/50C)
• Dimensions(LxWxH): 1.57"x0.78"x1.53" (40x20x39.1mm)
• Weight: 2.99oz (85g)
• Operating Spline: 25T

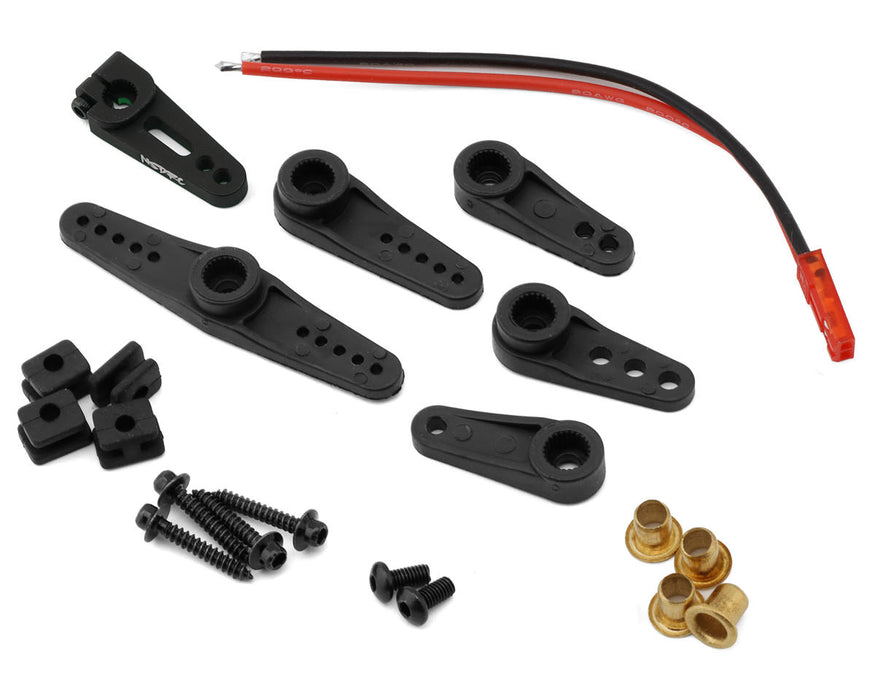

INCLUDES:

• (1) RS800 V2 Special Edition Brushless Servo (High Voltage)
• (1) Aluminum Servo Horn
• Servo Horns and Mounting Hardware

Notes:

• The power connection plug, or power switch on your esc, MUST be disconnected/ turned off when not in use to prevent damage to the servo and/or battery
• Not recommended to power using balance plug
