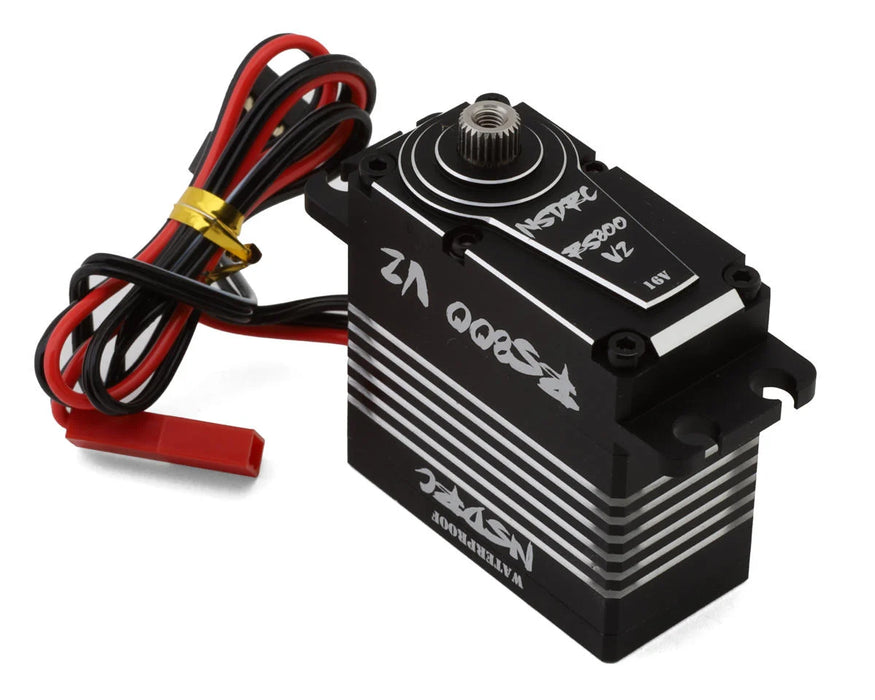

No Superior Designs RC NSDRC RS8V2 RS800 V2 Ultra High Torque Brushless High Voltage Servo

No Superior Designs RS800 V2 Ultra High Torque Brushless Servo. Designed to fulfill the power and speed demanded for competition level 1/10 RC crawlers and to be one of the top performing servos on the market! This powerful RS800 V2 features hardened stainless steel gears, black anodized all CNC-machined aluminum case, high quality powerful brushless motor, high voltage (HV) capability and a water resistant design. In addition, this RS800 V2 can put out up to 1100oz-in/80kg-cm of pure torque and 0.10 sec/60° of speed on 16.8V! With all these features and more at a budget friendly cost, this servo offers an incredibly unbeatable value!

FEATURES:

• Hardened stainless steel gears
• Black anodized all CNC-machined aluminum case
• Water resistant (Not Submergible)
• Designed and built with the power and speed needed for competition level 1/10 RC crawlers
• High quality powerful brushless motor
• High voltage (HV) capable
• Built with the top quality materials

SPECIFICATIONS:

• Type: Standard
• Motor Type: Brushless
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40x39x20mm
• Weight: 85g
• Case: CNC-Machined Aluminum
• Torque:
• 8.4V: 600oz/ 43kg
• 12.6V: 900oz/ 65kg
• 16.8V: 1100oz/ 80kg
• Speed:
• 8.4V: 0.18 sec/60°
• 12.6V: 0.14 sec/60°
• 16.8V: 0.10 sec/60°

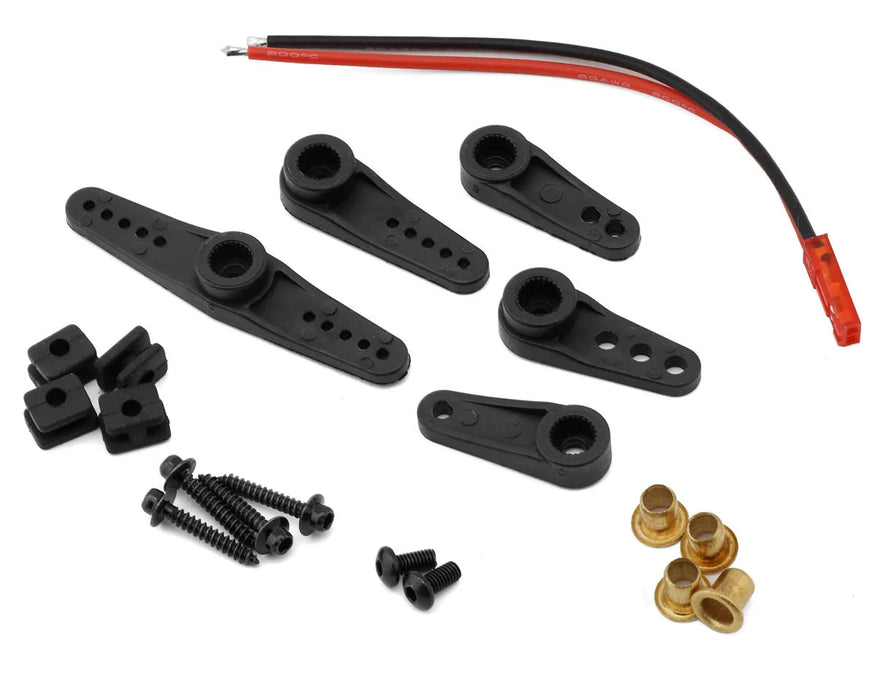

INCLUDES:

• (1) RS800 V2 Ultra High Torque Brushless Servo
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Notes:

• The power connection plug, or power switch on your ESC, must be disconnected or turned off when not in use to prevent damage to the servo and/or battery
• Not recommended to power using balance plug
