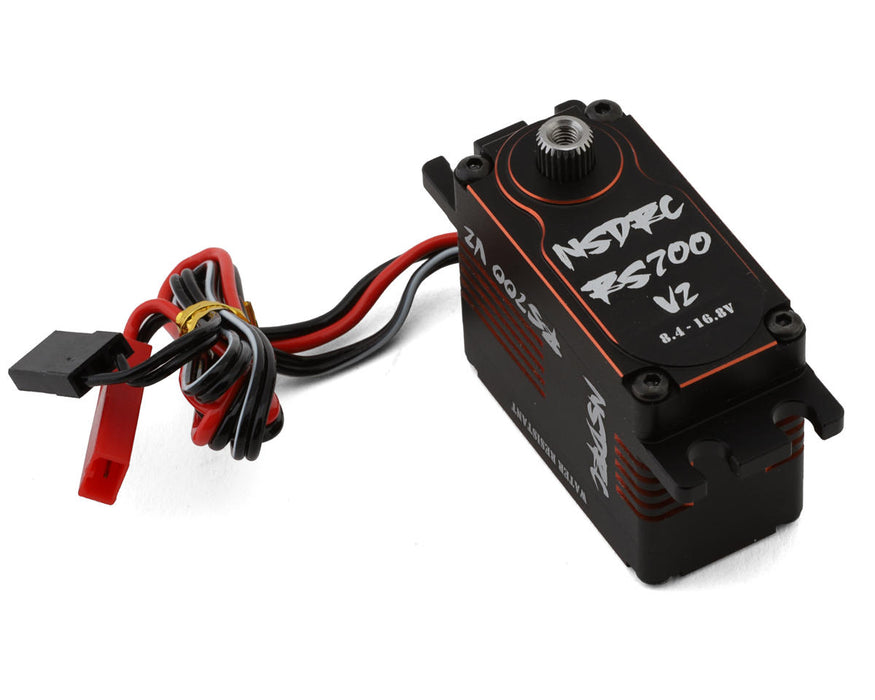

No Superior Designs RC NSDRC RS700V2O RS700 V2 Waterproof Brushless Low-Profile Servo

This is the RS700 V2 Special Edition Low-Profile Servo from No Superior Designs RC, designed with hardened 416 stainless steel gears, and a powerful 4-pole brushless motor to redefine speed, power, and precision in RC applications. With an astonishing 1115oz-in of torque and fast 0.09 transit speed at 16.8V, the RS700 V2 is the top contender for application requiring extreme torque and durability in a low-profile servo!

FEATURES:

• Extreme Performance: Delivers 1115oz-in of torque and 0.09 transit speed at 16.8V
• Durable Construction: Full CNC aluminum case for enhanced heat dissipation and durability
• Robust Gear Train: 5-gear stainless steel gear train ensures smooth and reliable operation under demanding conditions
• Waterproof Design: Perfect for outdoor tracks and trails!
• High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance

SPECIFICATIONS:

• Speed:
• @8.4V: 0.15sec/60°
• @12.6V: 0.11sec/60°
• @16.8V: 0.09sec/60°
• Torque:
• @8.4V: 634oz-in (46kg-cm)
• @12.6V: 912oz-in (66kg-cm)
• @16.8V: 1115oz-in (80kg-cm)
• Motor: Brushless
• Operating Voltage: 8.4V-16.8V
• Operating Temp.: 14F-122F (-10C/50C)
• Dimensions(LxWxH): 1.57"x0.78"x1.18" (40x20x30mm)
• Weight: 2.46oz (70g)
• Operating Spline: 25T

INCLUDES:

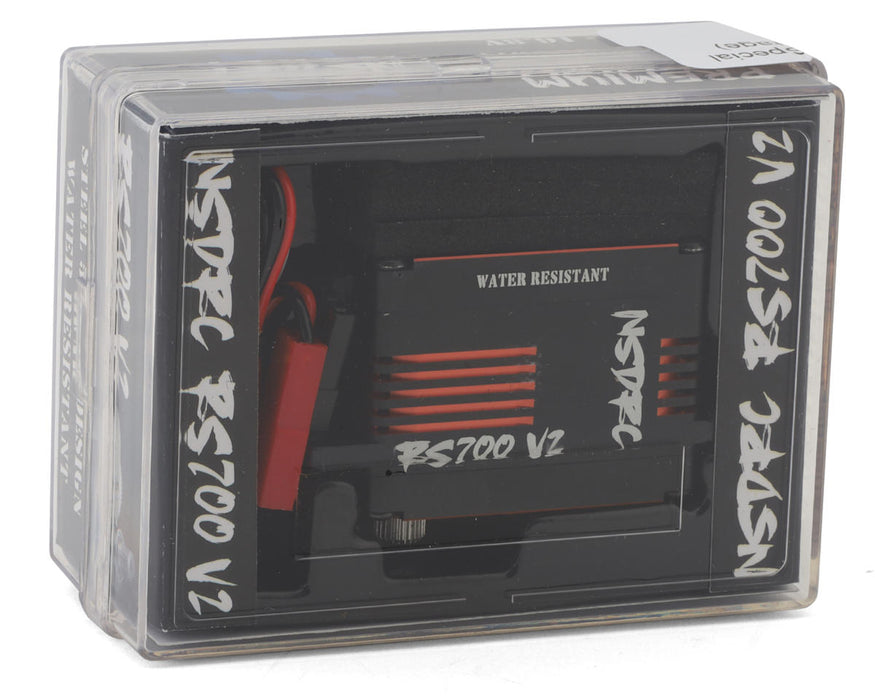

• (1) RS700 V2 Special Edition Low-Profile Servo (High Voltage)

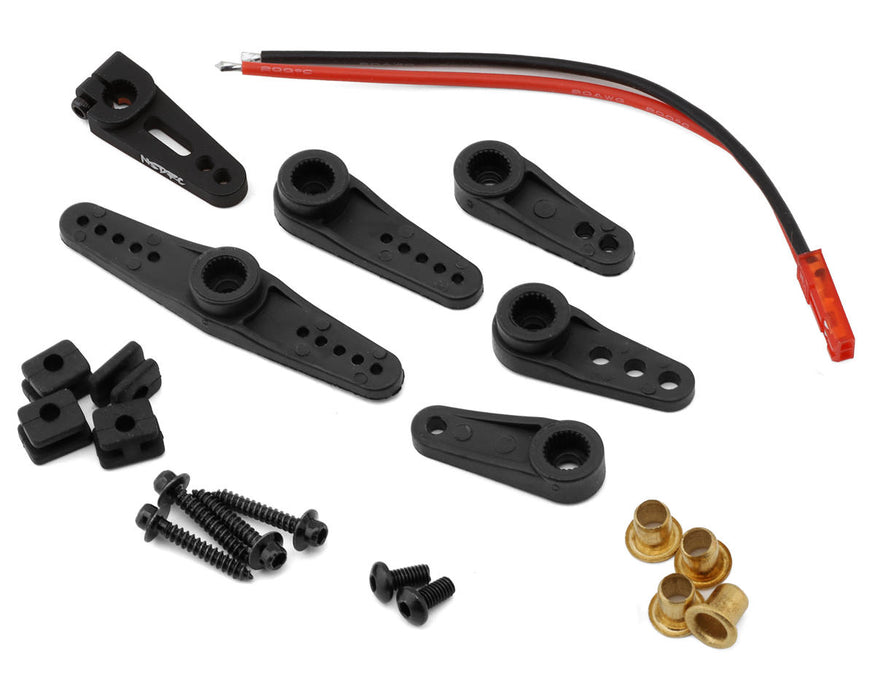

• (1) Aluminum Servo Horn
• Servo Horns and Mounting Hardware

Notes:

• Not recommended for rock bouncers & bashers
• Not recommended to power using balance plug
• Power switch on your esc, MUST be disconnected/ turned off when not in use to prevent damage to the servo and/or battery
