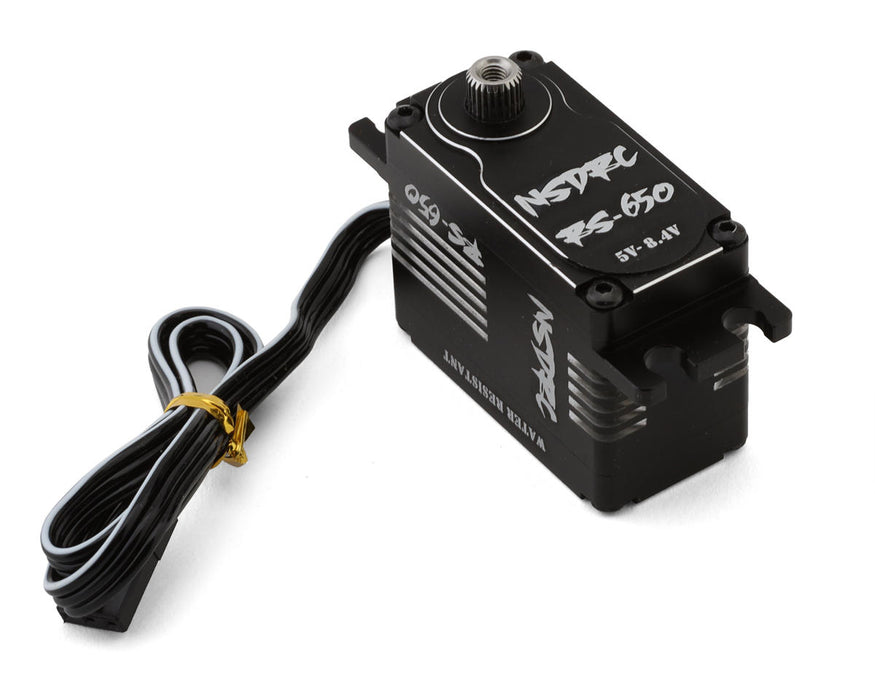

No Superior Designs RC NSDRC RS650 RS650 Waterproof Low Profile Brushless High Voltage Servo

This is the RS650 High Torque Low Profile Brushless Servo from No Superior Designs RC. The RS650 servo is engineered with hardened 416 stainless steel gears and features a custom 4-pole brushless motor, making it one of the top-performing low-profile high-voltage servos on the market. It is meticulously crafted with premium components to meet the demanding performance requirements of competition-level RC enthusiasts. The servo's standout feature is its industry-leading 5-gear 4-pole gear train design, which enhances durability and precision over traditional 4-gear designs while maintaining a compact and lightweight profile, ideal for high-performance RC applications.

FEATURES:

• Hardened 416 stainless steel gears
• Custom 4-pole brushless motor
• High voltage capable
• 5-gear 4-pole gear train for enhanced durability and precision
• Compact and low-profile design
• High torque performance
• Competitive-level RC servo
• Optimized for weight and space savings
• Industry-leading gear train design
• Designed for performance RC applications
• Water resistant casing

SPECIFICATIONS:

• Suggested Application: 1/10-1/8 Surface
• Input Voltage: 5.0V-8.4V
• Speed:
• 6.0V: 0.14 sec/60°
• 7.4V: 0.12 sec/60°
• 8.4V: 0.10 sec/60°
• Torque:
• 6.0V: 705oz-in (50.7kg-cm)
• 7.4V: 812oz-in (58.5kg-cm)
• 8.4V: 940oz-in (67.7kg-cm)
• Pulse/Frequency: 1520us
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Hardened Steel
• Dimensions: 1.58x0.79x1.21in. (40x20x30.7mm)
• Weight: 2.51oz (71g)

INCLUDES:

• (1) RS650 High Torque Low Profile Brushless Servo

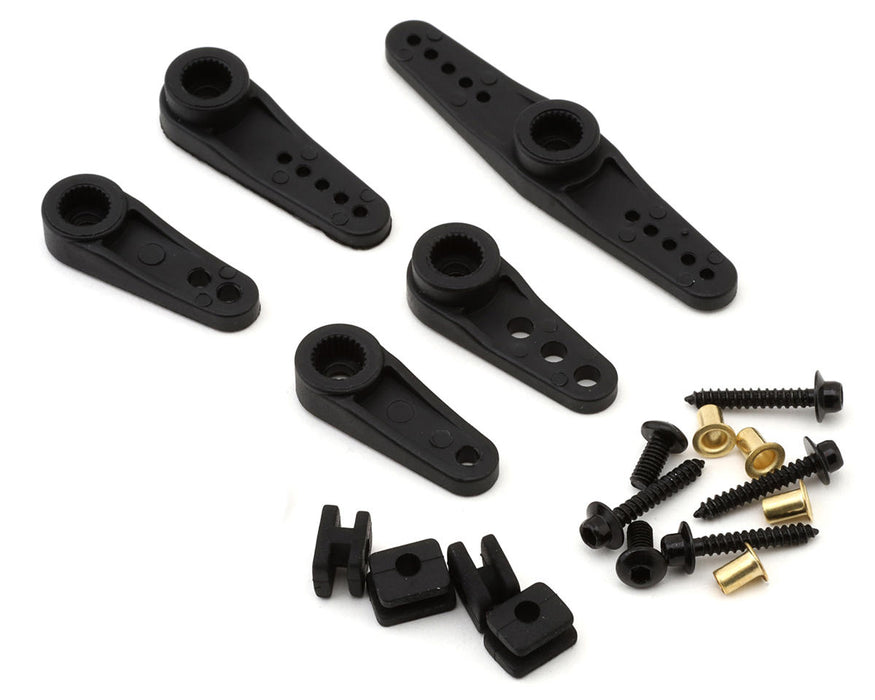

• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Notes:

• Not recommended for rock bouncers
• 10 Amp BEC is recommended to provide sufficient power
