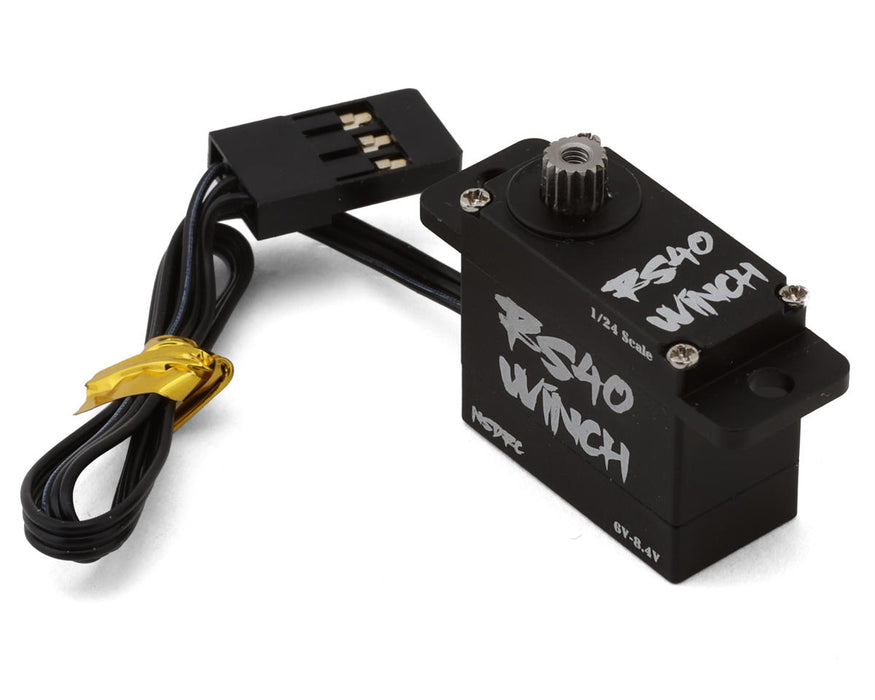

No Superior Designs RC NSDRC RS40W RS40 Nano High Voltage Servo Winch

No Superior Designs RS40 Nano Servo Winch. Designed in-house, the RS40 is the only Nano servo winch on the market at this time! Built for all 1/24 and 1/18 crawlers like the SCX24, Enduro24, TRX4M, RC4WD Gelande and more! While this Nano winch is tiny, it packs some serious power, speed, and excellent holding capabilities!

FEATURES:

• Hardened stainless steel gears
• CNC-machined aluminum Nano spool capable of holding 3ft of line
• Full CNC-machined Aluminum Case
• Water resistant (Not Submersible)
• High voltage (HV) capable
• Built-in Winch controller (Requires remote and receiver with 3rd channel momentary or 3 position switch )

SPECIFICATIONS:

• Type: Micro Winch
• Motor Type: Coreless
• Operating Voltage: 6V-8.4V
• Gears: Hardened Stainless Steel
• Spline: 15T 3.8mm Nano
• Dimension (LxWxH): 20x17x10mm
• Weight: 10g
• Case: CNC-Machined Aluminum
• Torque:
• 8.4V: 25oz
• 12.6V: 34oz
• 16.8V: 41oz
• Speed:
• 8.4V: 0.09 sec/60°
• 12.6V: 0.07 sec/60°
• 16.8V: 0.06 sec/60°

INCLUDES:

• (1) RS40 Nano Servo Winch

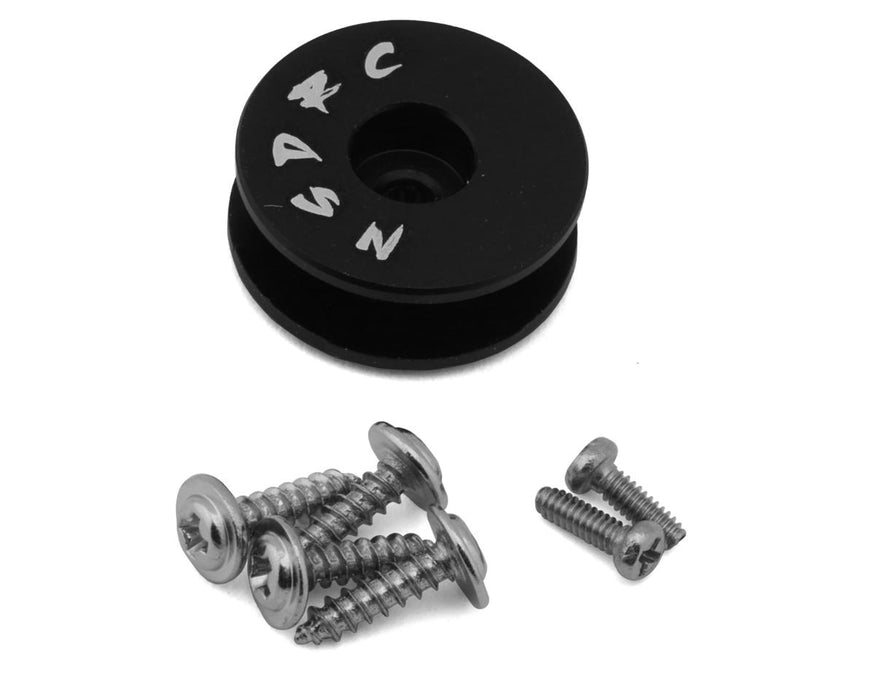

• (1) CNC-machined Aluminum Spool
• Mounting screws

Notes:

• Does not work as steering servo
• Winch Line, Hook, and Mounts are sold separately
