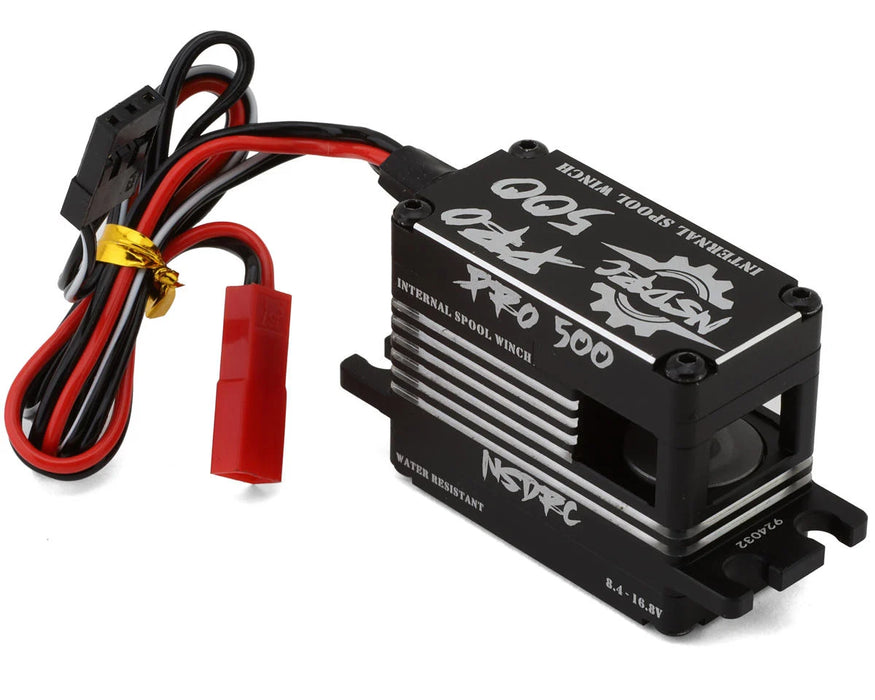

No Superior Designs RC NSDRC PRO500 PRO 500 Internal Spool Servo Winch
No Superior Designs PRO 500 Servo Winch with an Internal Spool. The ultimate machine for those looking for the all in one compact winch with killer speed, brute power, and the best holding power! Featuring a full CNC-machined aluminum case, hardened stainless steel gears, 11-point O-ring seals, water resistant design, high voltage (HV) capable and built-in winch controller and an internal spool, the Pro 500 has incredible brake/hold technology, durability, and super smooth actuation! With the built-in winch controller and direct power, you no longer need to spend extra money and effort on an external controller or BEC! Get this PRO 500 servo winch and experience the the high quality, performance, reliability and pure power of this all-around capable servo!
FEATURES:
- Hardened stainless steel gears
- High Quality Magnetic Encoder Angle Sensor
- Full CNC-machined Aluminum Case
- 11-Point O-ring seals
- Water resistant (Not Submersible)
- High voltage (HV) capable
- Built-in Winch controller and an internal spool (Requires remote and receiver with 3rd channel momentary or 3 position switch)
SPECIFICATIONS:
- Type: Winch
- Motor Type: Coreless
- Operating Voltage: 8.4V-16.8V
- Gears: Hardened Stainless Steel
- Dimension (LxWxH): 40x30x20mm
- Weight: 61g
- Case: CNC-Machined Aluminum
- Torque:
- 8.4V: 285oz
- 12.6V: 405oz
- 16.8V: 513oz
- Speed:
- 8.4V: 0.09 sec/60°
- 12.6V: 0.06 sec/60°
- 16.8V: 0.045 sec/60°
INCLUDES:

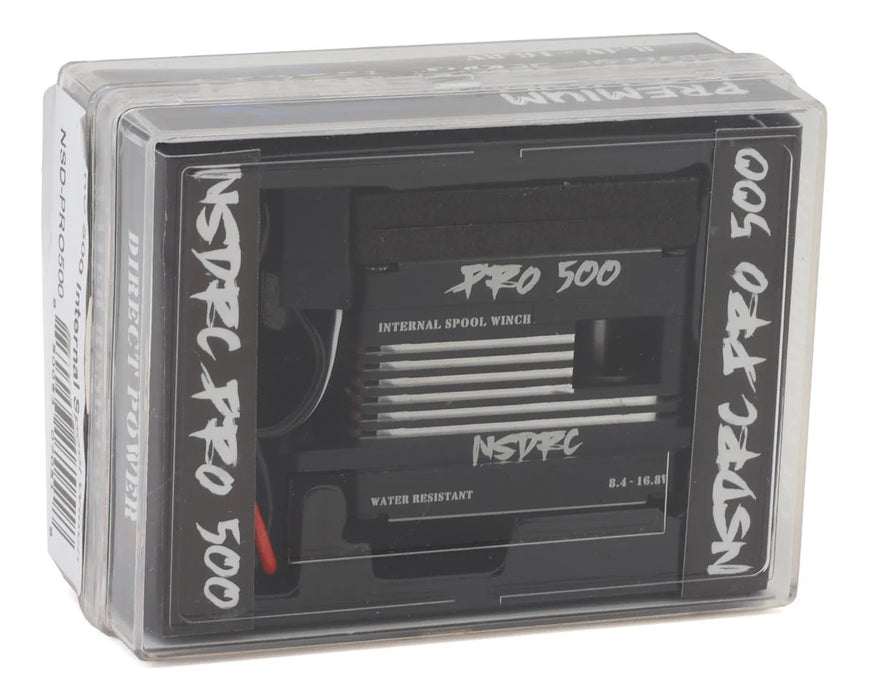

- (1) PRO 500 Servo Winch with an Internal Spool

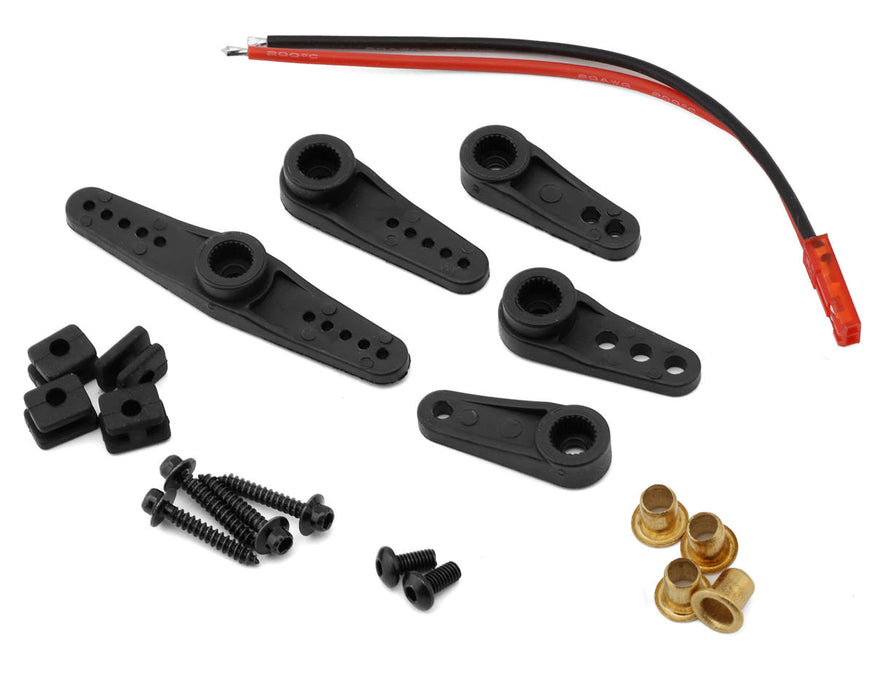

- Mounting screws
Notes:
- Does not work as steering servo
- Winch Line, Hook, and Mounts Sold separately
