No Superior Designs RC NSDRC MSRVOR RS100 Limited Edition Waterproof Micro Servo

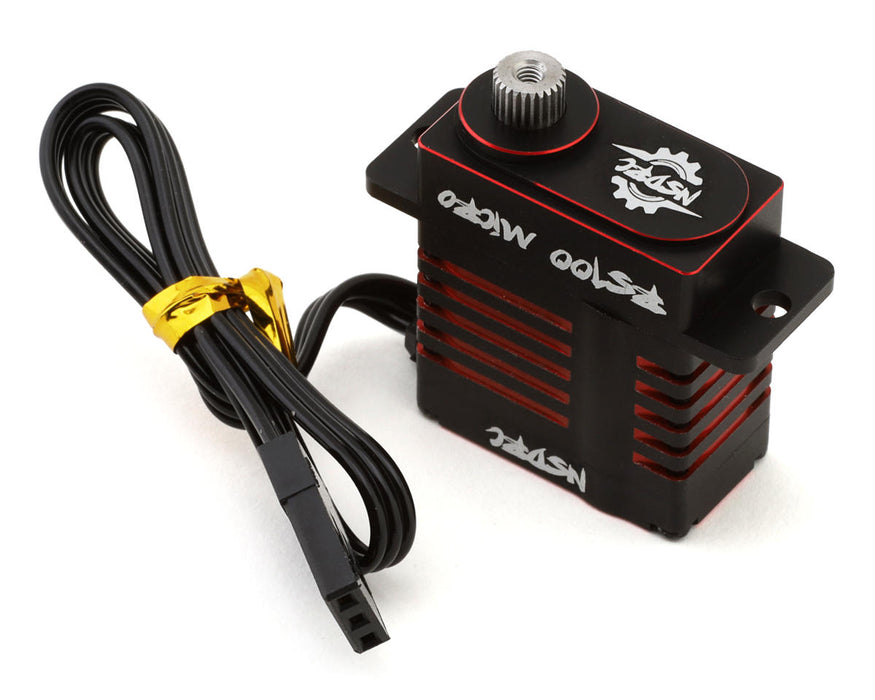

No Superior Designs RS100 Limited Edition High Torque Micro Servo. With an updated motor and heavy duty stainless steel gears for supreme power delivery and durability, this powerful RS100 limited edition micro servo is an excellent low budget option for applications in need of a reliable, durable and powerful micro servo! This servo features a black and red anodized all CNC-machined aluminum case, water resistant with 7-point O-ring seal, hardened stainless steel gears for maximum durability, high quality angle sensor and high voltage (HV) capability!

FEATURES:

• Black & Red anodized all CNC-machined aluminum Case
• Water Resistant with 7-point O-ring seal
• Hardened Stainless Steel Gears
• High voltage (HV) capable

SPECIFICATIONS:

• Type: Standard Micro
• Motor Type: Coreless
• Operating Voltage: 5V - 8.4V
• Gears: Hardened Stainless Steel
• Spline: 25T (4.9mm - Micro)
• Dimension (LxWxH): 26x23x12mm
• Weight: 20g
• Case: CNC-Machined Aluminum
• Torque:
• 6V: 152oz/ 11kg
• 7.4V: 175oz/ 12.7kg
• 8.4V: 197oz/ 14.2kg
• Speed:
• 6V: 0.09 sec/60°
• 7.4V: 0.07 sec/60°
• 8.4V: 0.06 sec/60°

INCLUDES:

• (1) RS100 Limited Edition High Torque Micro Servo

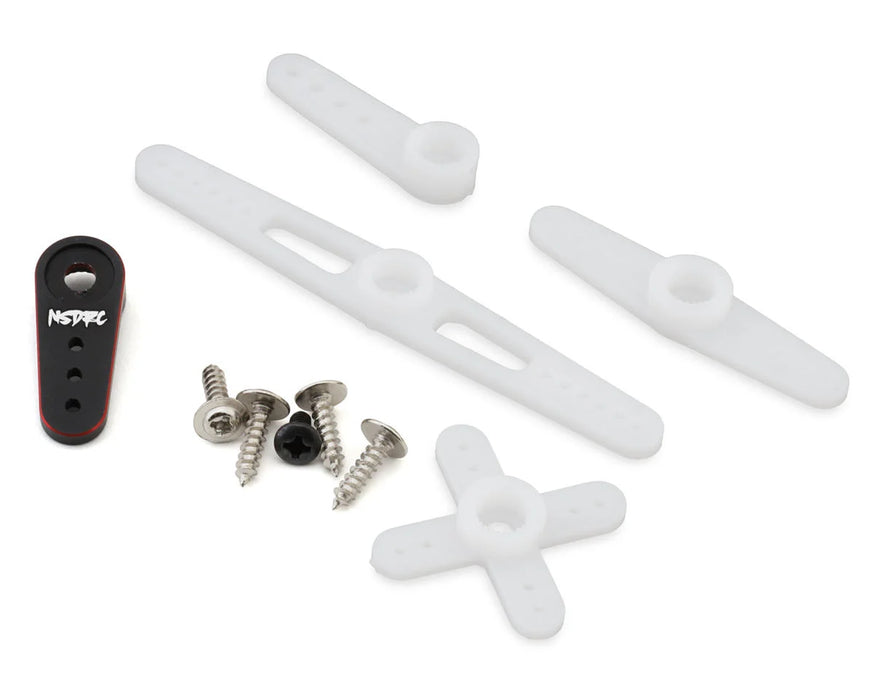

• (1) Anodized CNC-Machined micro horn
• Multiple composite horns
• Mounting screws, bushing and rubber grommets

NOTE:

• Micro BEC is recommend for Micro servos being used in 1/24 and 1/18 Micro
• Not Submarine proof, do not submerge
