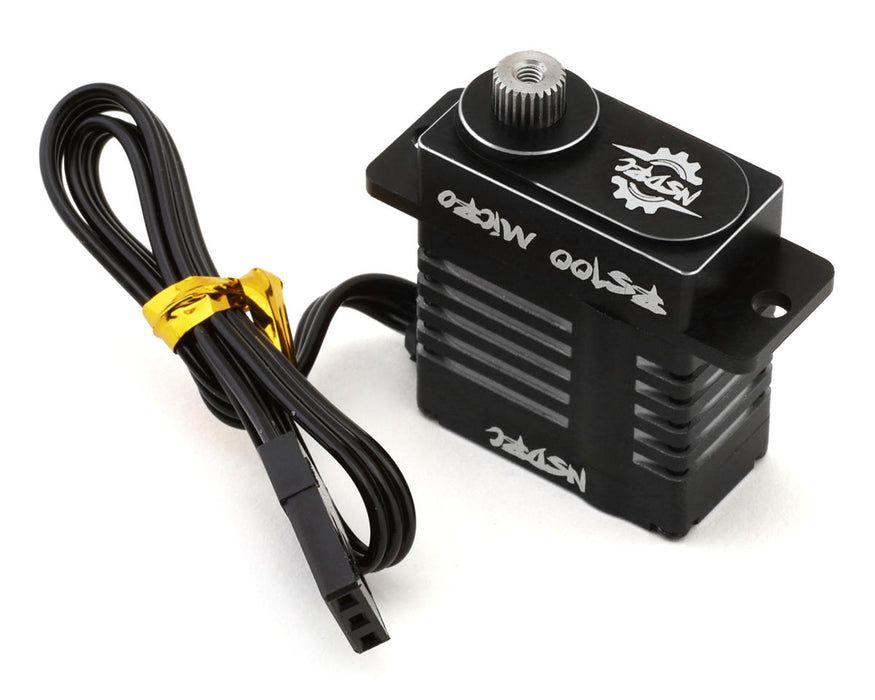

No Superior Designs RC NSDRC MSRVO RS100 Black High Torque Waterproof Micro Servo

No Superior Designs RS100 High Torque Micro Servo. With an updated motor and heavy duty stainless steel gears for supreme power delivery and durability, this powerful RS100M micro servo is an excellent low budget option for applications in need of a reliable, durable and powerful micro servo! Features a black anodized all CNC-machined aluminum Case, water resistant with 7-point O-ring seal, hardened stainless steel gears for maximum durability, high quality Angle sensor and high voltage (HV) capability!

FEATURES:

• Perfect upgrade and fit for micro 1/24 crawlers, mini 1/18 scale platforms and shift or dig functions on 1/10 scale crawlers
• Black anodized all CNC-machined aluminum Case
• Water Resistant with 7-point O-ring seal
• Hardened Stainless Steel Gears
• Two ball bearing design
• High quality Angle Sensor
• High voltage (HV) capable

SPECIFICATIONS:

• Type: Standard Micro
• Motor Type: Coreless
• Operating Voltage: 6V - 8.4V
• Gears: Hardened Stainless Steel
• Spline: 25T (4.9mm - Micro)
• Dimension (LxWxH): 26x23x12mm
• Weight: 20g
• Case: CNC-Machined Aluminum
• Torque:
• 6V: 152oz/ 11kg
• 7.4V: 175oz/ 12.7kg
• 8.4V: 197oz/ 14.2kg
• Speed:
• 6V: 0.09 sec/60°
• 7.4V: 0.07 sec/60°
• 8.4V: 0.06 sec/60°

INCLUDES:

• (1) RS100 High Torque Micro Servo

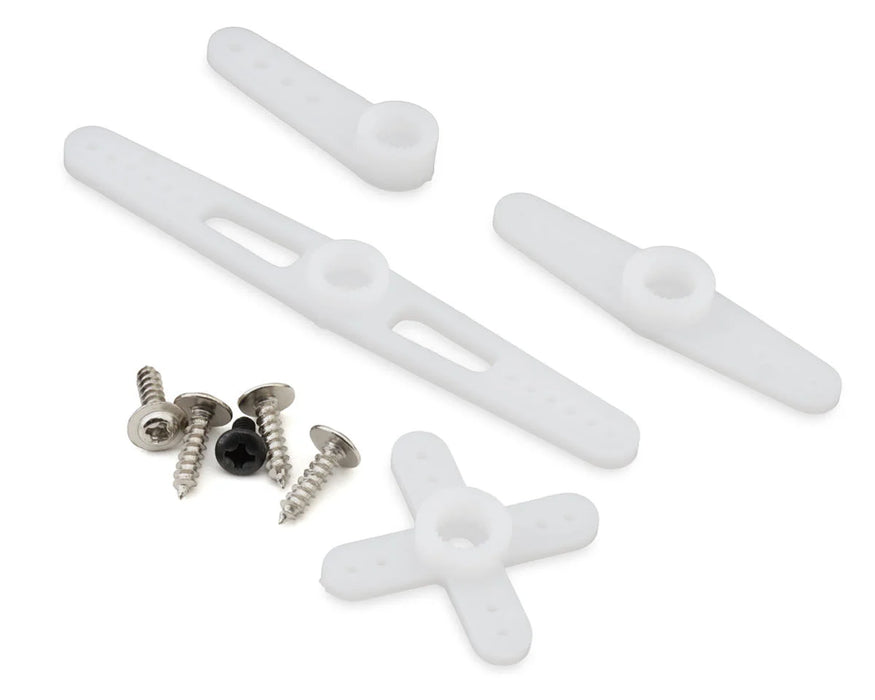

• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Notes:

• Not Submarine proof, do not submerge

• Micro BEC is recommended for Micro servos being used in 1/24 and 1/18 Micro platforms. Stock Micro RC electronics are typically pretty weak and need a boost in order to run high power servos properly
