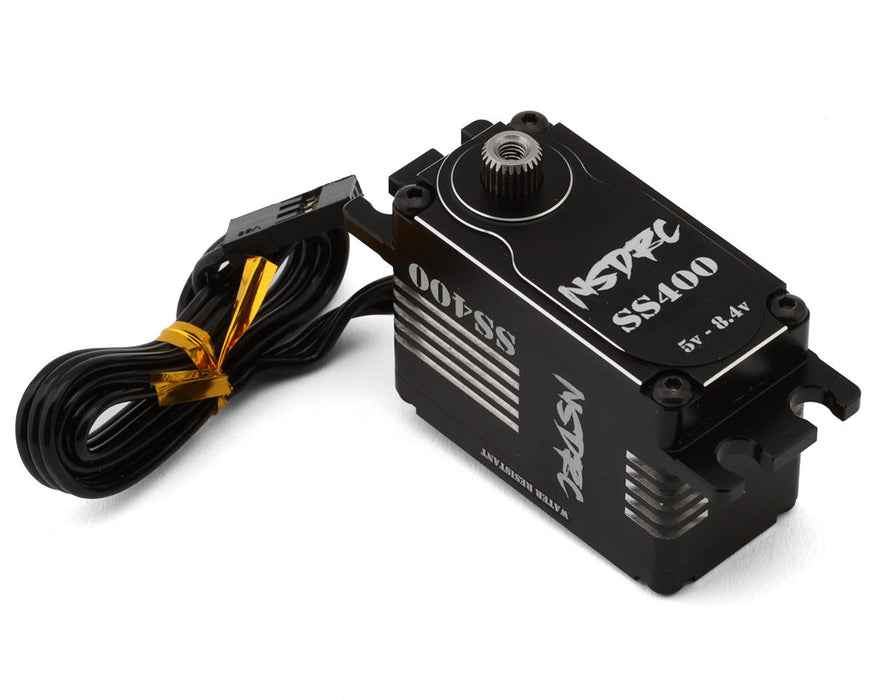

No Superior Designs RC NSDRC 400S SS400 Low Profile Racing Servo
No Superior Designs RC SS400 Low Profile High Voltage Racing Servo. Designed with speed and precision in mind to deliver an incredible 400oz-in of torque and 0.05 transit speed at 8.4V! Making this servo a top contender for many 1/18 to 1/8 scale on-road and off-road vehicles used for racing, drifting, and anything else requiring lighting fast speed, awesome responsiveness, and great power! Other features include a full CNC-machined aluminum case that provides high durability and improved heat dissipation, an industry leading 5 gear stainless steel gear train that is supported by dual ball bearings, and a high efficiency coreless motor. In addition, using the industry leading 5-gear stainless steel gear-train alongside a high quality magnetic angle sensor that gives the SS400 a superior centering with extreme precision, smooth actuation and unrivaled durability!
FEATURES:
- Low-Profile case design that saves space and weight
- 5-gear stainless steel design
- Black anodized all CNC-machined aluminum case provides high durability and improved heat dissipation
- Hardened stainless steel gears
- High Efficiency Coreless Motor
- Water Resistant (Not Recommended to submerged)
- 11 Point O-ring seal
- Dual Ball Bearings
- High quality magnetic angle sensor
- High voltage (HV) 8.4V capable!
SPECIFICATIONS:
- Type: Low Profile High Speed Racing Servo
- Motor Type: Coreless
- Operating Voltage: 5V - 8.4V
- Gears: Hardened Stainless Steel
- Spline: 25T
- Dimension (LxWxH): 40x27x20mm
- Weight: 64g
- Case: CNC-Machined Aluminum
- Torque:
- 6V: 290oz-in (21kg-cm)
- 7.4V: 345oz-in (25kg-cm)
- 8.4V: 400oz-in (29kg-cm)
- Speed:
- 8.4V: 0.07 sec/60°
- 12.6V: 0.06 sec/60°
- 16.8V: 0.05 sec/60°
INCLUDES:

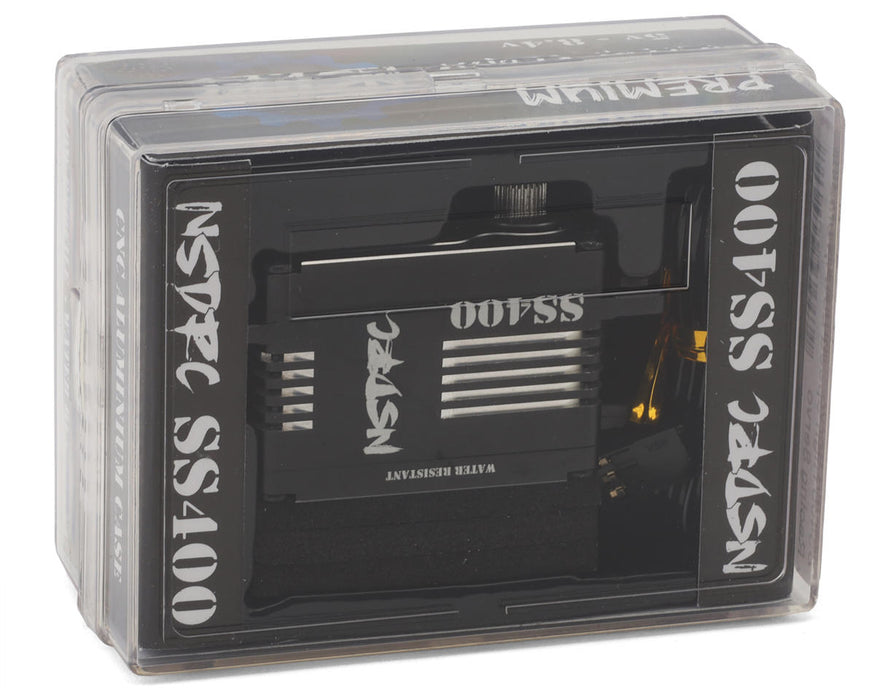

- (1) SS400 Low Profile Racing Servo

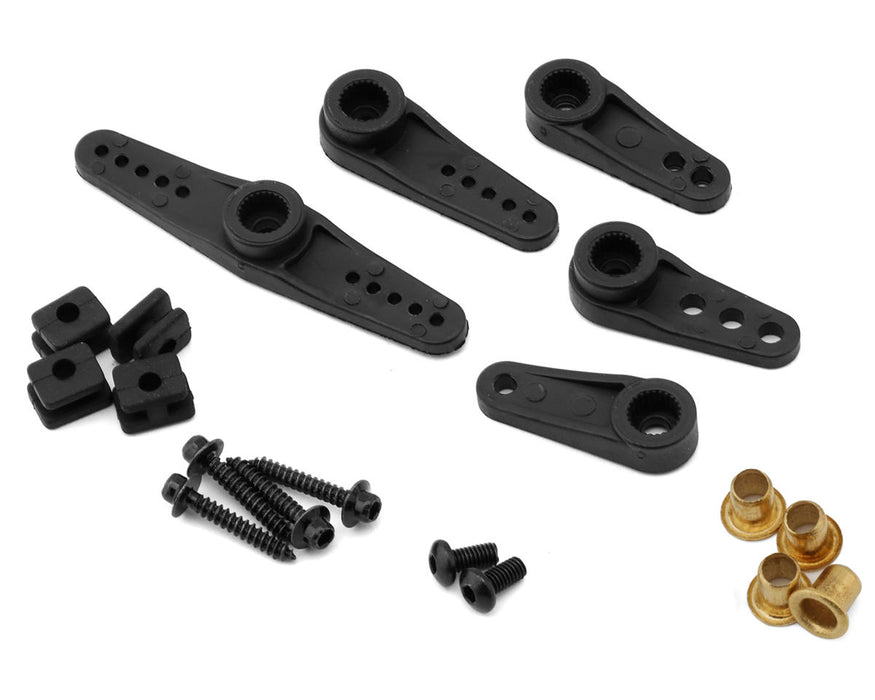

- Multiple composite horns
- Mounting screws, bushing and rubber grommets
NOTE: The power connection plug, or power switch on your ESC, must be disconnected and turned off when not in use to prevent damage to the servo and/or battery! Not recommended to power using a balance plug.
