NCE 5240115 Snap-It for Twin Coil Switch Machines

Accessory DCC Decoder

With the NCE Snap-It you can control one twin coil switch machine. It has capacitive discharge for low current draw of track power. The Snap-It provides connections for two "local control" push buttons. You can control switches from your cabs and your control panels.

FEATURES:

• Control for one twin coil (Atlas solenoid type) switch machine ONLY
• Capacitive discharge for very low current draw of track power
• Snap-It supports the full range of DCC accessory addresses (1-2044)
• Easy address programming, no need to connect it to programming track

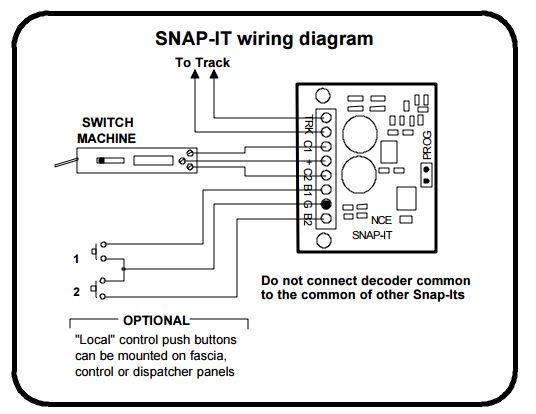

• Simple hook up, 2 wires to the track, 3 wires to switch machine
• Includes optional connections for "local" control push buttons
• An external power supply can be connected for more power
