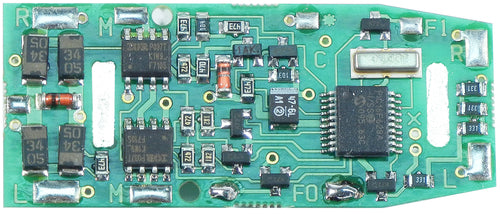

NCE 5240110 SW9-SR HO Scale Walthers / Life-Like SW8 / SW9 / SW1200 Board Replacement DCC Mobile Decoder
(Dual Mode, will operate on DC)

This decoder is made to fit the Life-Like HO Scale SW8 / SW9 / SW1200 switcher. Easy installation exactly replaces the existing PC board in the locomotive. No need to remove the weight. The decoder provides a means to install a white LED or 12 Volt bulb as headlight. Because the 1.5 Volt rear light in this locomotive is difficult to replace we provide a dropping resistor right on the decoder. Three function outputs. Size: 0.100" thick - fits Proto 2000 SW8 / SW9 / SW1200.

Click here for the manual from NCE Information Station

The NCE SW9-SR is an EPF (extended packet format) decoder supporting:

• Silent Running motor drive

• Improved DC operation (with lighting effects)

• Torque Compensation (dither) for ultra smooth low speed performance

• Programmable Start, Mid and Maximum speed works for all speed modes

• Motor rating 1.3 Amp continuous, 2 Amp peak (stall)

• All five function outputs have lighting effects generators

• Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
  Lighting outputs can be mapped to different functions

• Uploadable speed table interpolated to 128 speed steps

• Decoder assisted consisting
  Support for all forms of DCC programming

• Decoder programming lock mechanism

• Brake on DC feature assists automatic train control
