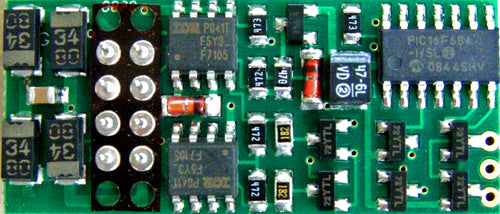

NCE 5240108 P2k-SR 4-Function HO Scale NMRA 8 Pin Plug DCC Mobile Decoder (Dual Mode, will operate on DC)

This HO sized decoder designed for the Life-Like Proto 2000 (Now Walthers) GP7/9/30 and SD60 locomotives in HO Scale. Can also be used in some Life-Like Steam locomotives with the factory lighting. The easiest installation possible, just plug it in! Note: follow LifeLike’s directions about using the correct light bulbs for DCC. 1.3 Amp (2 Amp peak). Four function outputs, smooth and quiet. Size: 1.45" x 0.65".

Click here for the manual from NCE Information Station

The NCE D15SR is an EPF (extended packet format) decoder supporting:

• Silent Running motor drive

• Improved DC operation (with lighting effects)

• Torque Compensation (dither) for ultra smooth low speed performance

• Programmable Start, Mid and Maximum speed works for all speed modes

• Motor rating 1.3 Amp continuous, 2 Amp peak (stall)

• All five function outputs have lighting effects generators

• Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
  Lighting outputs can be mapped to different functions

• Uploadable speed table interpolated to 128 speed steps

• Decoder assisted consisting
  Support for all forms of DCC programming

• Decoder programming lock mechanism

• Brake on DC feature assists automatic train control
