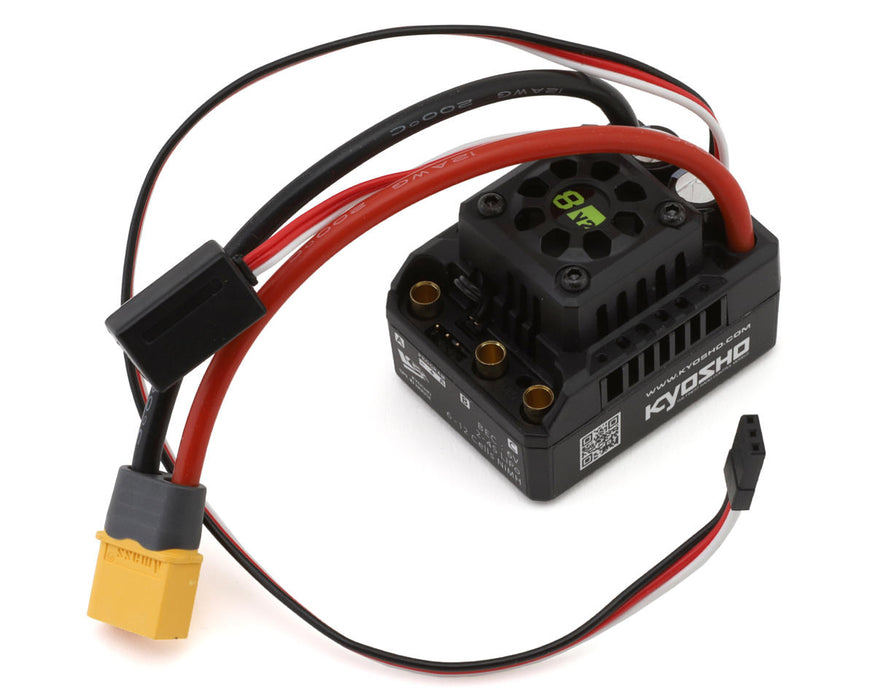

Kyosho 82254 Speed House Brainz 8 V2 120A Sensorless Brushless ESC
Unleash serious power and all-weather reliability with the Kyosho Speed House Brainz 8 V2 120A ESC — built to handle demanding 1/8 scale performance with ease, simple tuning, and rock-solid protection that keeps you running hard in any condition.
The Kyosho Speed House Brainz 8 V2 120A Sensorless Brushless ESC delivers strong, reliable power with a 120A continuous and 830A peak current rating, making it ideal for 1/8 scale and larger 1/10 applications. Its 2–4S LiPo compatibility, built-in low voltage cut-off, and thermal protection ensure safe, consistent operation, while the waterproof design allows for worry-free driving in any conditions. Easy tuning via the SET button lets you quickly adjust brake strength, punch, and drag brake through simple beep codes, and the pre-soldered XT60 connector makes installation fast and convenient.
FEATURES:
- Delivers 120A continuous and 830A peak power
- Supports 2–4S LiPo batteries
- Built-in low voltage cut-off protects batteries
- Overheating protection ensures safe operation
- Waterproof design for all-weather driving
- Easy programming using the SET button and beep codes
- Adjustable brake strength, punch, and drag brake
- Pre-soldered XT60 connector for quick installation
SPECIFICATIONS:
- Suggested Application: 1/8 On-Road & Off-Road
- Motor Type: Sensorless Brushless
- Input Voltage: 2-4S (7.4-14.8V)
- Continuous Current: 120A
- Burst Current: 830A
- Dimensions (LxWxH): 0.748031×1.55×1.36in (19×39.5×34.7mm)
- Weight: 3.70oz (105g)
- BEC Voltage: 6V
- Motor Connector: 4.0mm Bullets
- Battery Connector: XT60
- Battery Wire: 12 AWG
- Programmable: Yes
