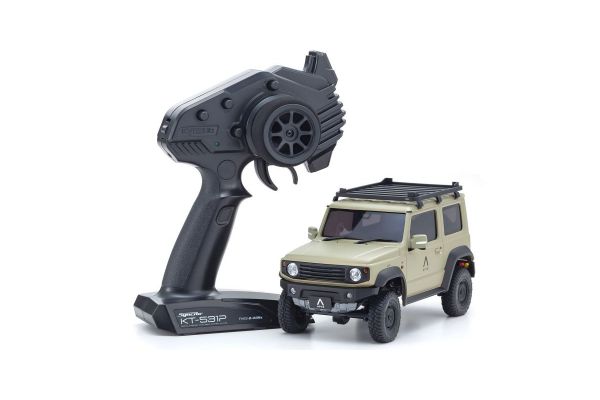

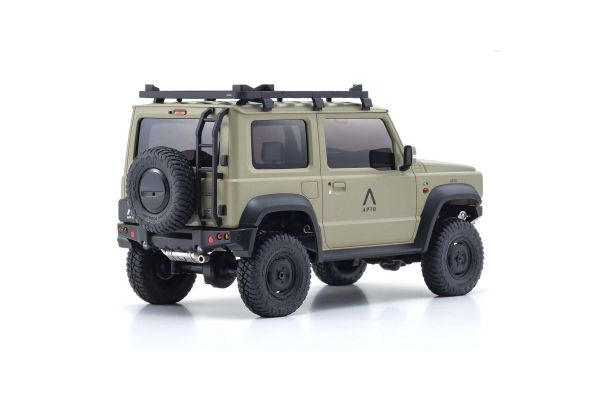

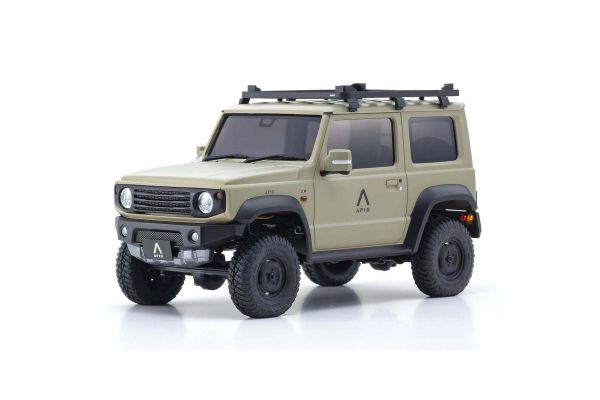

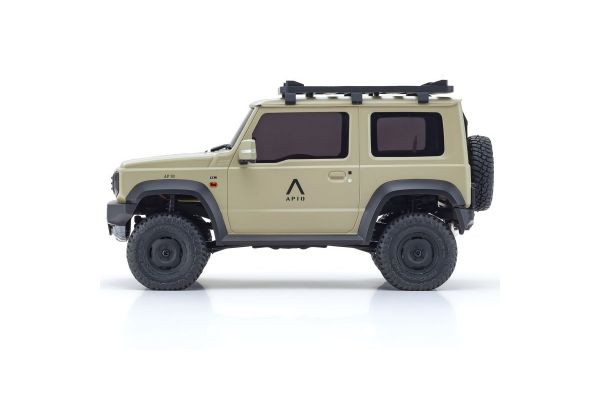

Kyosho 32525K Mini-Z MX-01 4x4 Readyset Suzuki Jimny, APIO TS4 Khaki

The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. Designed in collaboration with Jimny Proshop Apio, the wild ride of the Jimny has been recreated with realistic front grill / front bumper / rear bumper / roof rack / rear ladder / rear number plate / Yoshimura muffler / wheels etc.

FEATURES:

• The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability
• Solid front and rear axles feature steel tie rods and captured ends. Ring and pinion gear and other components feature metal construction for durability and consistent performance
• Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension
• The gearbox features molded covers, ball bearings, and 6 pinion gears that allow a full range of adjustment according to your chosen terrain. As with all Mini-Z models the gear mesh is easily set using the provided spacers
• A standard slipper clutch protects the drive system and features a metal shaft and primary gear for durability

SPECIFICATIONS:

• Length 191mm
• Width 84mm
• Height 102.0mm
• Chassis Type MX-01
• Wheel Base 120mm
• Tread F/R:72.7mm
• Weight 242g (excl. battery)
• Motor/Engine 130 Class
• Gear Ratio 55.44：1/46.20：1/39.60：1/34.65：1/30.80：1/27.72：1
• Front Tire Diameter Φ37.0mm
• Rear Tire Diameter Φ37.0mm
• Front Tire Width 12mm
• Rear Tire Width 12mm
• Battery 4 x AAA Alkaline
• Transmitter Syncro KT-531P
• Speed：Approx. 2.7km/h〜5.4km/h (Pinion gears 10T〜 20T)
• Running Time Approx. 60 mins

INCLUDES:

• Complete chassis with built-in electronics
• Factory-painted body complete with many fine details
• KT-531P 2.4GHz transmitter
• Pinion gear set（10T、12T、14T、16T、18T、20T）
• 3 types of pinion gear spacers

Needed to complete:

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for chassis (Alkaline or NiMH)
