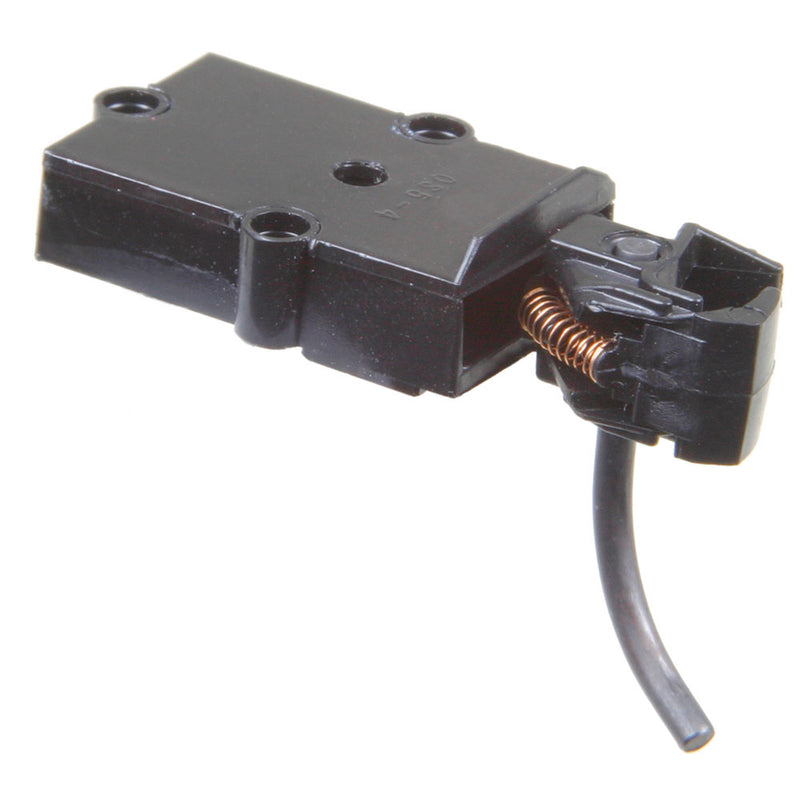

Kadee On30 Scale 803 Plastic Couplers with Gearboxes - Black

On3-Scale

• Simple Drop in Design

• Trouble Free Operation

• World-Renowned Quality & Performance

• They just Last & Last & Last...

Package Includes:

• (4) Each #803 Plastic Couplers - Black

• (4) Each #803 Plastic Gearboxes & lids - Black

• (6) Each #846 On3 Scale Centering Springs

• (2) Extra #847 On3 Scale Knuckle Springs

• (8) Each 0-48 x 3/8 Screws

#803 Plastic Coupler Features:

• Material - Plastic

• Shank Length - (17/64") (Back of head to center hole of Draft Gearbox)

• Coupler Offset - Centerset

• Centering Spring - #846 On3 Scale Centering Springs

• Knuckle Spring - #847 On3 Scale Knuckle Springs

• Works In Place of - #807 Couplers

• Works With - On3 Scale Draft Gearboxes

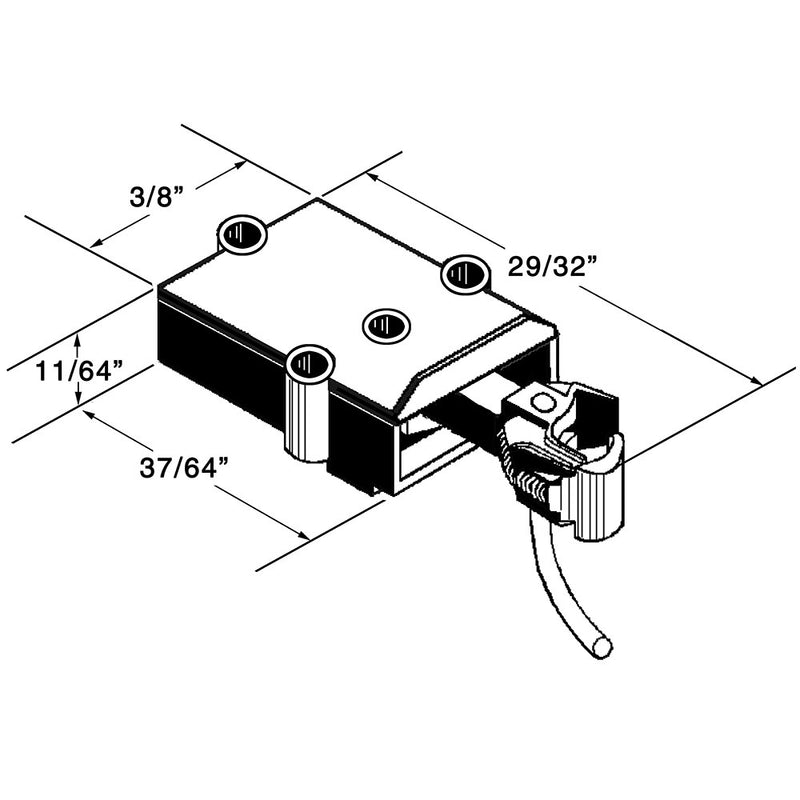

#803 Plastic Draft Gearboxes & Lids Features:

• Material - Plastic

• Dimensions - 37/64"L x 3/8"W x 11/64"H

• Works With - #808 Couplers

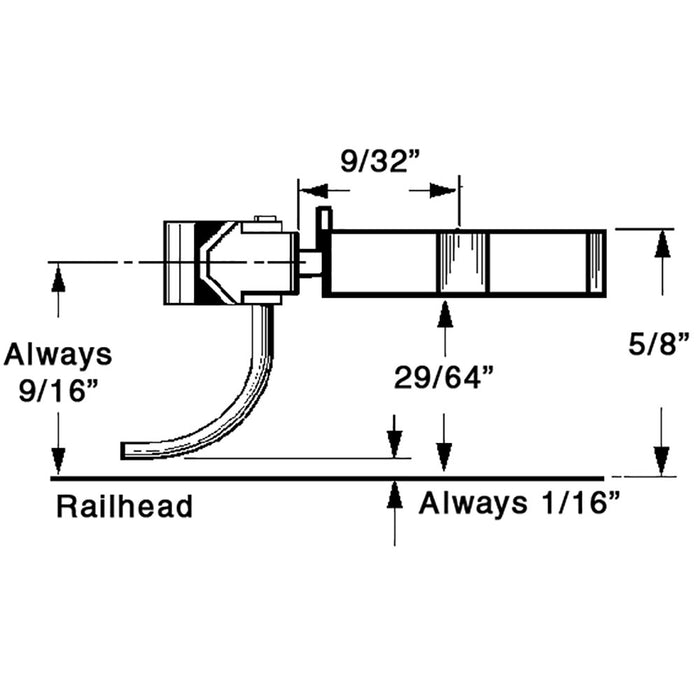

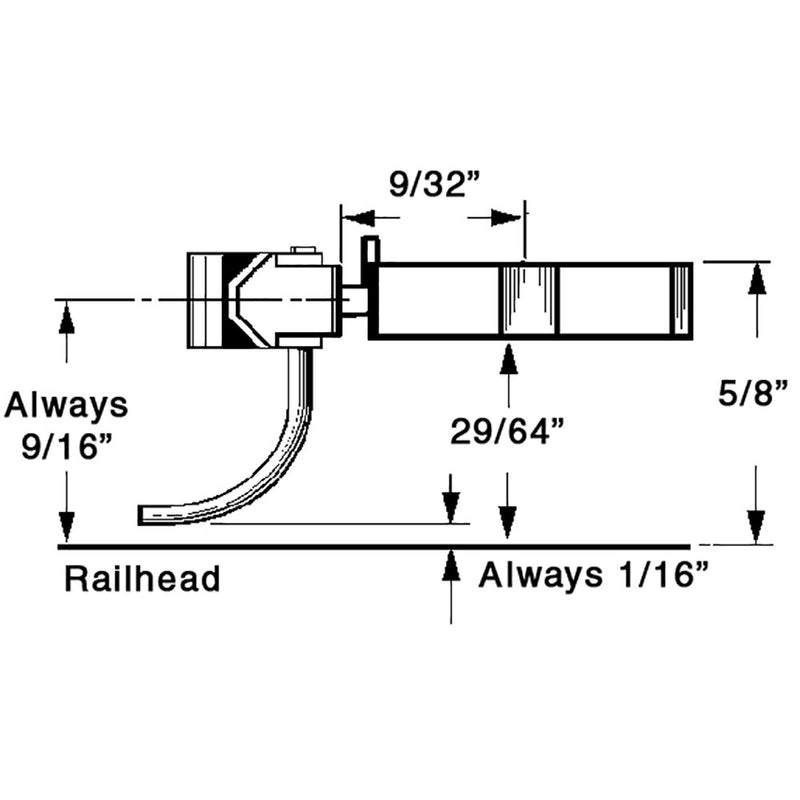

Mounting Specifications:

• Mounting Height - 5/8"

• Centerline - 19/16"

• Trip Pin Height - 1/16"

• Mounting Holes - 0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary)
