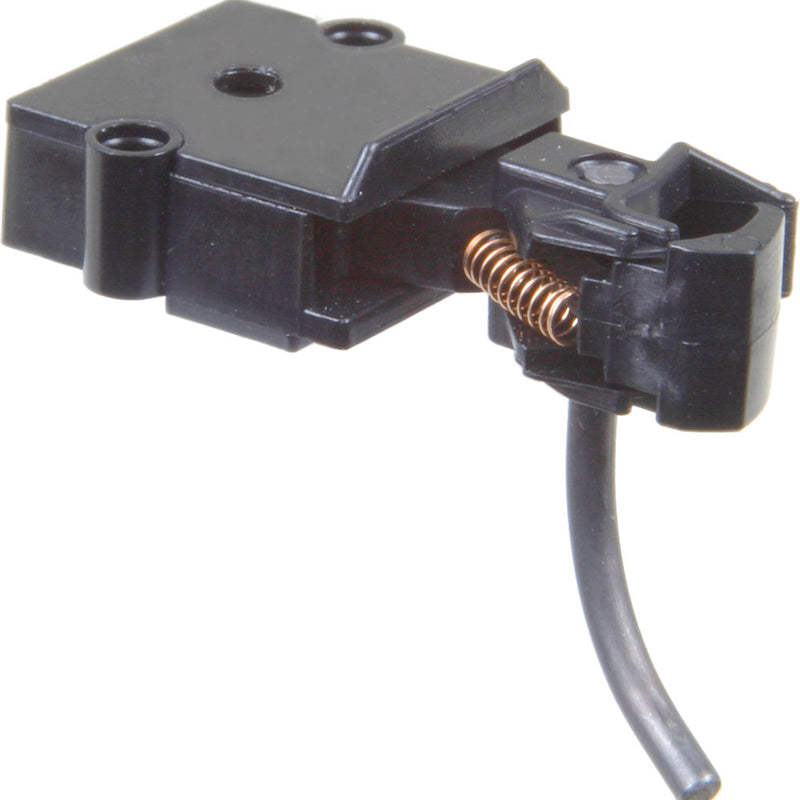

Kadee O Scale 806 Short Plastic Couplers with Plastic Short Gearboxes - Black

This industry leading coupler features Original Style Head Short Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

• One pair per package

• UPC: 765484008064

• USA Flag Made in the U.S.A.


O-Scale

• Simple Drop in Design

• Trouble Free Operation

• Compatible with All Kadee® O-Scale Couplers

• World-Renowned Quality & Performance

• They just Last & Last & Last...

Package Includes:

• (2) Each #806 Original Style Plastic Couplers - Short Centerset Shank

• (2) Each Short Plastic Gearboxes & lids (#806 type)

• (3) Each #850 O Scale Centering Springs

#806 Plastic Coupler Features:

• Material - Plastic

• Shank Length - Short (47/64") (Knuckle pulling face to center hole of Draft Gearbox)

• Coupler Offset - Centerset

• Centering Spring - #850 O Scale Centering Springs

• Knuckle Spring - #845 O Scale Knuckle Springs

• Head - Original Style Head

• Works In Place of - #743 O Scale Short Centerset Shank Couplers

• Works With - #806 type Draft Gearboxes

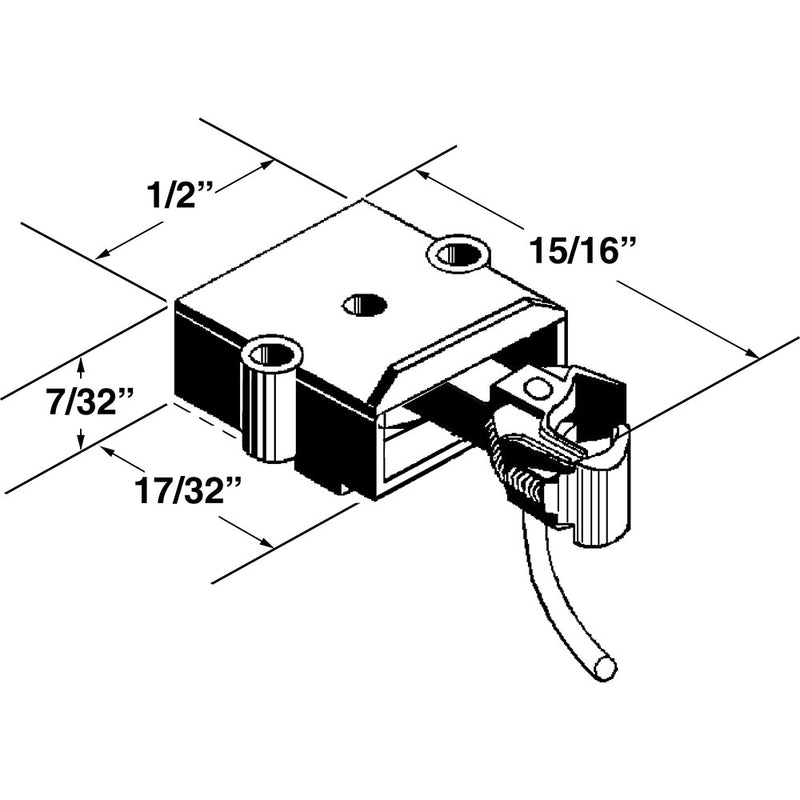

Plastic Short Draft Gearboxes & Lids Features (#806 type):

• Material - Plastic

• Dimensions - 17/32"L x 1/2"W x 7/32"H

• Works With - #743, & #806 Couplers

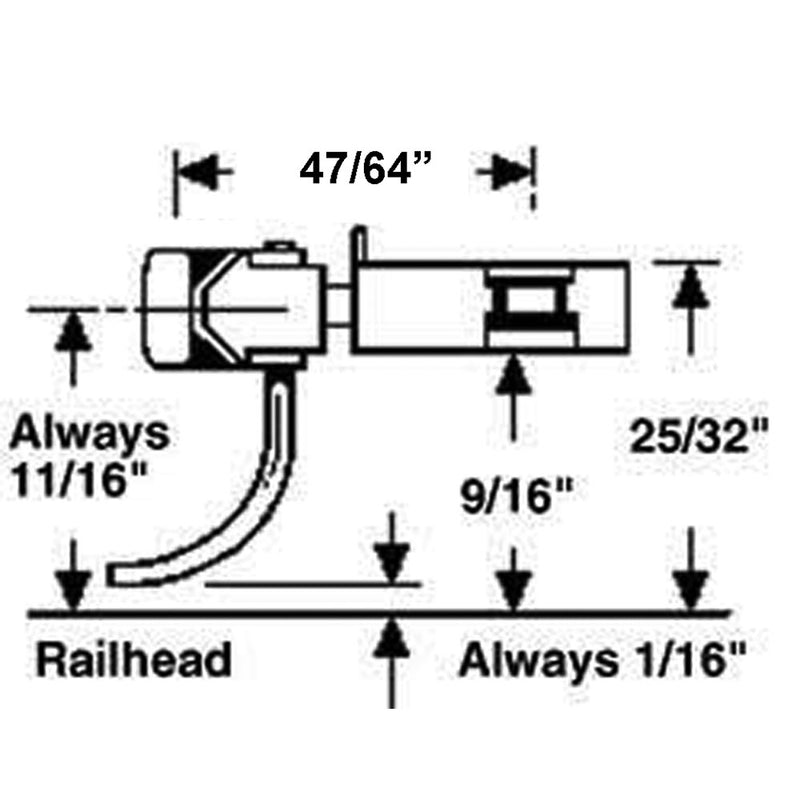

Mounting Specifications:

• Mounting Height - 25/32"

• Centerline - 1 1/16"

• Trip Pin Height - 1/16"

• Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
