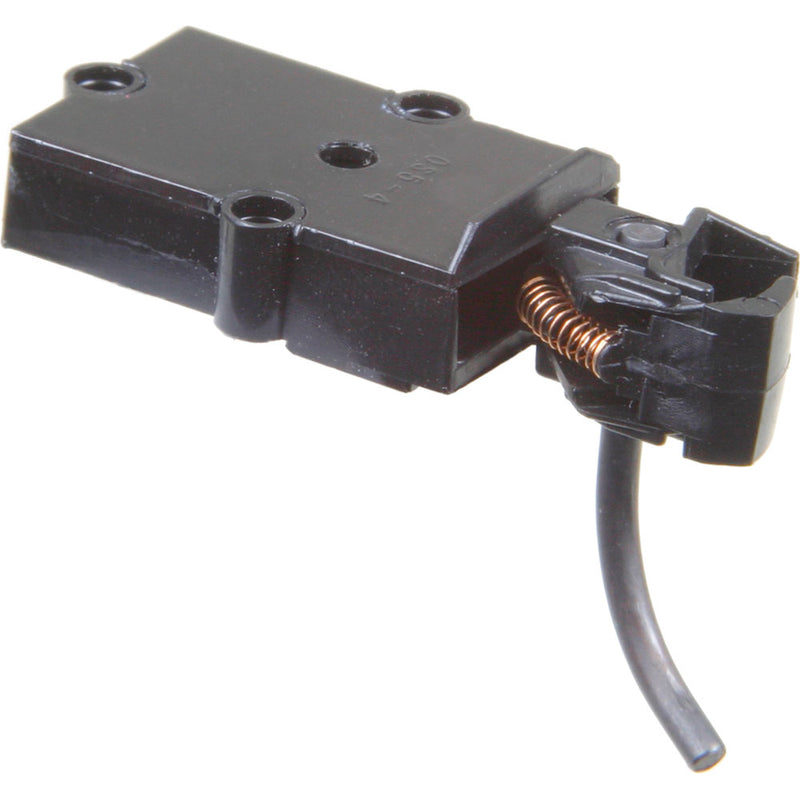

Kadee O Scale 804 Medium Centerset Plastic Couplers with Gearboxes - Black

This industry leading coupler features Original Style Head Medium Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #804 Plastic Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

• One pair per package
• UPC: 765484008040
• USA Flag Made in the U.S.A.

O-Scale

• Simple Drop in Design

• Trouble Free Operation

• Compatible with All Kadee® O-Scale Couplers

• World-Renowned Quality & Performance

• They just Last & Last & Last...

Package Includes:

• (2) Each #804 Original Style Plastic Couplers - Medium Centerset Shank

• (2) Each #817 Plastic Gearboxes & lids

• (3) Each #850 O Scale Centering Springs

#804 Plastic Coupler Features:

• Material - Plastic

• Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)

• Coupler Offset - Centerset

• Centering Spring - #850 O Scale Centering Springs

• Knuckle Spring - #845 O Scale Knuckle Springs

• Head - Original Style Head

• Works In Place of - #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers

• Works With - #817, #818, #819 Draft Gearboxes

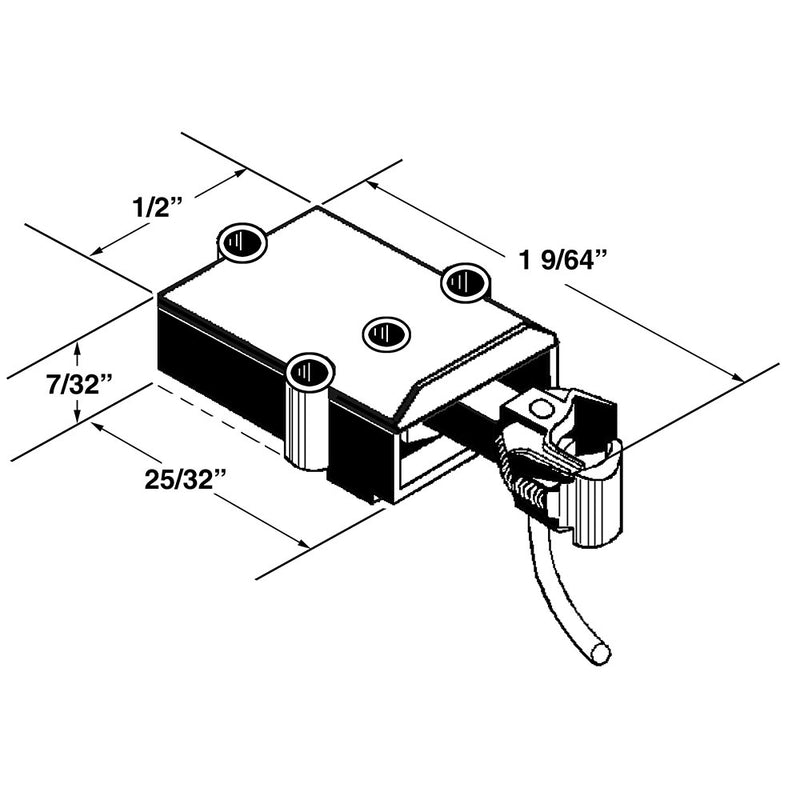

#817 Plastic Draft Gearboxes & Lids Features:

• Material - Plastic

• Dimensions - 25/32"L x 1/2"W x 7/32"H

• Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

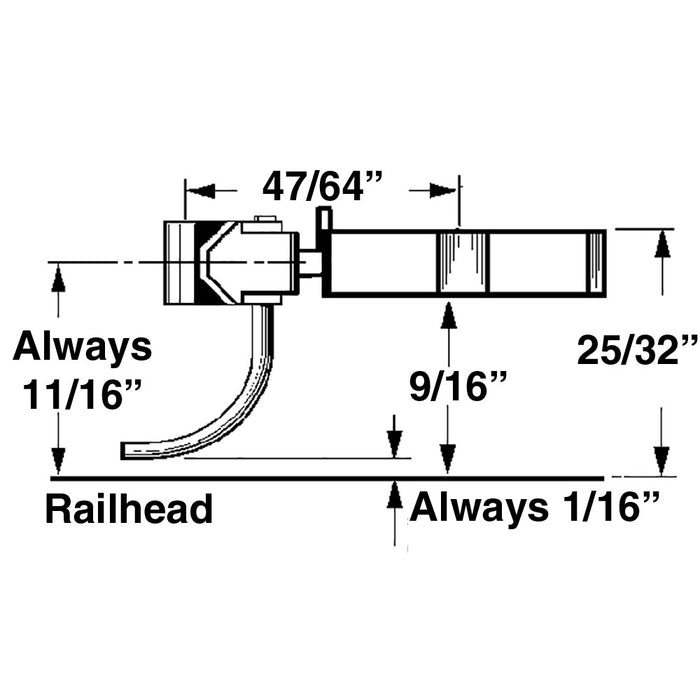

Mounting Specifications:

• Mounting Height - 25/32"

• Centerline - 1 1/16"

• Trip Pin Height - 1/16"

• Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
