Kadee HO Scalen3 #714 Couplers (Acetal)

by Kadee
$3.09

Kadee HO Scalen3 #714 Couplers (Acetal)

HOn3 Coupler for locomotives and rolling stock.

This Kadee® Coupler features "Delayed Action" coupling.

Metal Wheelsets Offer Exceptional Realism and Reliability

The #713 & #714 Split Shank Plastic Coupler will work anywhere a #705 Metal Coupler will work.

This industry leading coupler features a plastic coupler and coil centering spring and comes complete with a insulated draft gearbox and lid. The #714 Magne-Matic® Split Shank Couplers may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.

(The #702 Coupler Assembly Fixture can be used to ease assembly)

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Features:

  • Also adaptable to TT-Scale
  • Unassembled Kit
  • Black colored
  • Two pair per package
  • UPC: 765484007142
  • HOn3-Scale
  • 0-48 or 0-80 screws are the most commonly used screws.
  • Screw length will very depending on the mounting situation.

Package Includes:

  • (2) Pair Unassembled Split Shank Couplers
  • (2) Pair Unassembled Gearboxes & Lids
  • (5) Each #714 Trip Pins
  • (6) Each #636 Centering Springs
  • (4) Each #402 Self Tapping Screws 0-48 x 1/4"

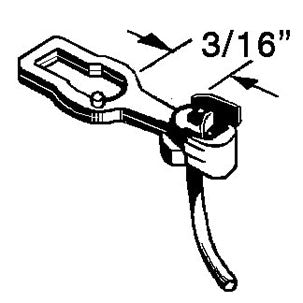

#714 Split Shank Coupler Features:

  • Material - Plastic
  • Shank Length - (3/16")
  • Coupler Offset - Centers

#714 Gearbox Features:

  • Material - Insulated Plastic
  • Dimensions - 27/64"L x 15/64"W x 1/8"H

Mounting Specifications:

  • Mounting Height - 11/32"
  • Centerline - 9/32"
  • Trip Pin Height - 1/32"
  • Center Hole - 0-48 Screw. (Screw length will vary) no less then 1/4" length.
