Kadee HO Scale #39 Long (25/64") overset shank

2 Pair

The #39 Kadee® Magne-Matic® Coupler
features a very strong plastic insulated coupler,
#621 Torsion Centering Spring & insulated
#233 Draft Gear Box.

30-Series Kadee® Magne-Matic® Couplers
are designed for body mounting either above or
below the mounting platform, with or without
Draft Gear Box Lid and with Draft Gear Box
Lid either on top or bottom.

Note: The 30-Series Torsion Spring can be
mounted either below or above the coupler shank,
but must always be mounted between the
Coupler Spring Lid and Draft Gear Box.

This industry leading coupler features plastic standard coupler with metal knuckle, and #621 torsion centering spring and comes complete with #233 insulated draft gearbox and lid. The #39 Magne-Matic® Metal Coupler is designed mostly for body mounting with limited space either above or below the mounting platform, with or without Draft Gear Box Lid and with Draft Gearbox Lid either on top or bottom.

Note: The 30-Series Torsion Spring can be mounted either below or above the coupler shank, but must always be mounted between the Coupler Spring Lid and Draft Gearbox.

The 149 Whisker® Metal Coupler mounted in a #252 Snap-together Gearbox is equivalent to the #39 Coupler. The Whisker® Coupler mounted in a #252 Snap-together Gear box makes for simple and easy assembly.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

Features:

• Two pair per package

• UPC: 765484000396

• HO-Scale


Package Includes:

• (2) Pair #39 Plastic Shank Couplers - Long Overset Shank

• (2) Pair #621 Torsion Centering Spring

• (2) Pair #233 Gearboxes & Lids

• (2) Pair #210 Washers

• (2) Pair #256 - 2-56 Screws

• (2) #622 Knuckle Springs

#39 Plastic Coupler Features:

• Material - Metal Knuckle, Plastic Coupler Shank

• Shank Length - Long (25/64") (center hole to back of coupler head)

• Coupler Offset - Overset

• Knuckle Spring - #622

• Centering System - Standard Shank

• Centering Spring - #621 Torsion Centering Spring

• Head - Standard Head

• Works With - #233 draft gearboxes

#233 Plastic Draft Gearboxes & Lids Features:

• Material - Insulated Plastic

• Dimensions - 3/8"L x 5/16"W x 9/64"H

• Works With - NO.5®, #58, 20-Series Couplers

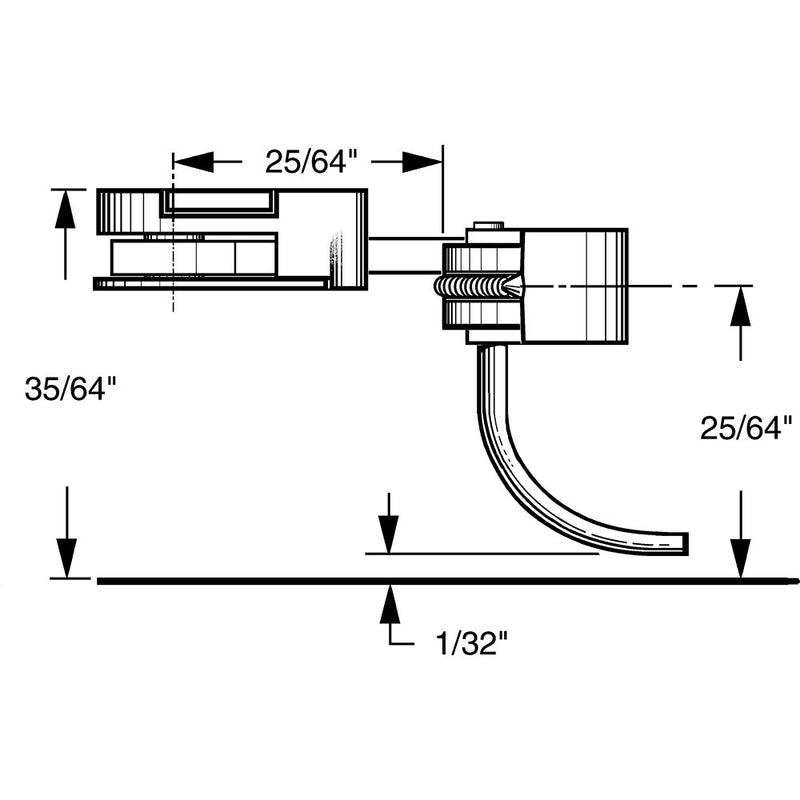

#39 in a #233 monted on top. Mounting Specifications:

• Mounting Height - 35/64"

• Centerline - 25/64"

• Trip Pin Height - 1/32"

• Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

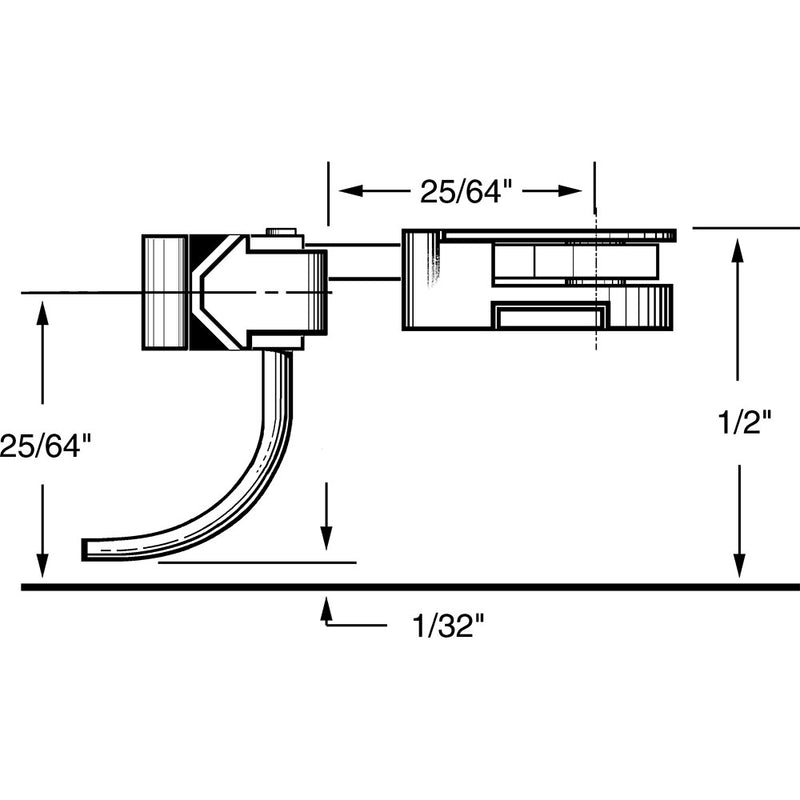

#39 in a #233 monted on bottom. Mounting Specifications:

• Mounting Height - 1/2"

• Centerline - 25/64"

• Trip Pin Height - 1/32"

• Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
