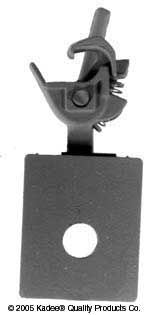

Kadee HO Scale #26 Long (25/64") Centerset Shank

Two pair per package

The 20-Series Kadee® Magne-Matic®
Couplers are designed for either Talgo
(truck) or body mounting.

The #26 Kadee® Magne-Matic®
Coupler features a very strong plastic
isolated coupler, #634 Centering Spring,
(same gear box as the NO.5®Coupler), insulated
#232 Draft Gear Box and Lid with side and
center screw holes for mounting and the
(20-Series draft gear box) insulated
#213 Universal Adaptor Plate.

The #26 Coupler easily installs in existing
Talgo-mounted draft gear boxes or can be
body mounted with supplied #232 draft gear
box (NO.5®Draft Gear Box) with side and center
screw holes for mounting or with the supplied
#213 Universal Adaptor Plate
(20-Series draft gear box).

Note: The 20-Series assembly may be
mounted from the top or mounted from the
bottom but the #634 Centering Spring must
be always mounted on top of coupler shank.

The 20-Series Kadee® Magne-Matic® Couplers are designed for either Talgo (truck) or body mounting.

The #26 Kadee® Magne-Matic® Coupler features a very strong plastic isolated coupler, #634 Centering Spring, (same gear box as the NO.5® Coupler), insulated #232 Draft Gear Box and Lid with side and center screw holes for mounting and the (20-Series draft gear box) insulated #213 Universal Adaptor Plate.

The #26 Coupler easily installs in existing Talgo-mounted draft gear boxes with supplied #212 Talgo Truck Adaptors or can be body mounted with supplied #232 draft gear box (NO.5® Draft Gear Box) with side and center screw holes for mounting or with the supplied #213 Universal Adaptor Plate (20-Series draft gear box).

Note: The 20-Series assembly may be mounted from the top or mounted from the bottom but the #634 Centering Spring must be always mounted on top of coupler shank.
