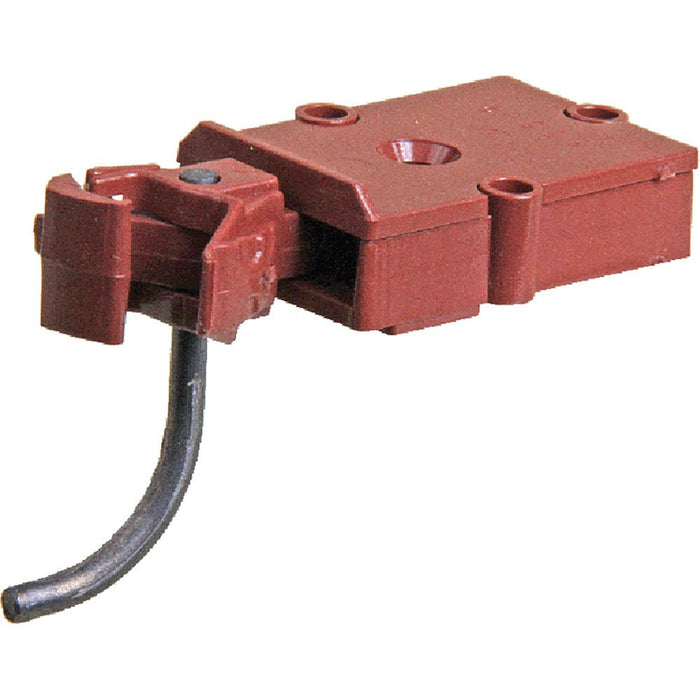

Kadee 920 1 Scale Straight Centerset Shank Couplers with Body Mount Gearboxes - Rust

1 Pair

This industry leading coupler features Original Style Head Straight Centerset Shank Couplers, and #879 1 Scale centering spring and comes complete with #1920R Body Mount Gearboxes and lids.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

FEATURES:

• One pair per package
• UPC: 7654840092007
• Made in the U.S.A.
• 1-Scale
• Simple Drop in Design
• Trouble Free Operation
• Compatible with All Kadee® 1-Scale Couplers
• World-Renowned Quality & Performance
• They just Last & Last & Last...

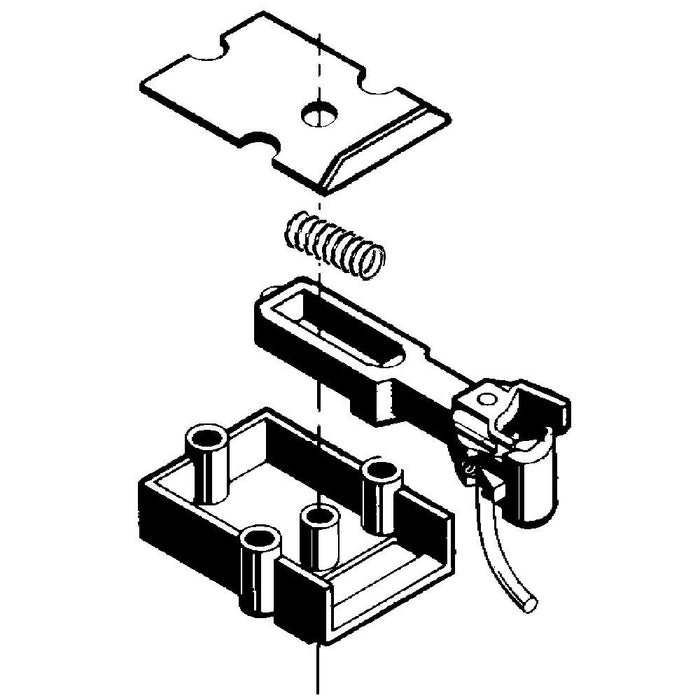

Package Includes:

• (2) Each #920 Original Style Plastic Couplers - Straight Centerset Shank
• (2) Each #1920R Body Mount Gearbox & lids
• (3) Each #879 Centering Springs
• (1) Each #1875 Knuckle Springs
• (4) Each #4 x 3/4" Screws

#820 Plastic Coupler Features:

• Material - Plastic
• Shank Length - (9/16") (Back of the Coupler Head to center hole of Draft Gearbox)
• Coupler Offset - Centerset
• Centering Spring - #879 #1 Scale Centering Springs
• Knuckle Spring - #1875 #1 Scale Knuckle Springs
• Head -Original Style Head
• Works In Place of - #1906, #1906R, & #820 1 Scale Straight Centerset Couplers
• Works With - #1920, #1920R Draft Gearboxes

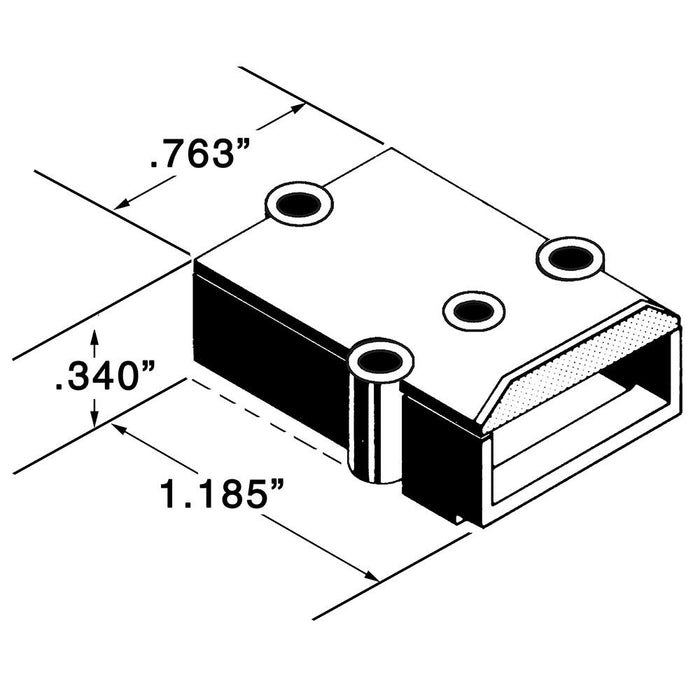

#1920 Plastic Draft Gearboxes & Lids Features:

• Material - Plastic
• Dimensions -1 1/4"L x 7/8"W x 5/16"H
• Works With - #820, #1906, #1906R, & #920 Couplers

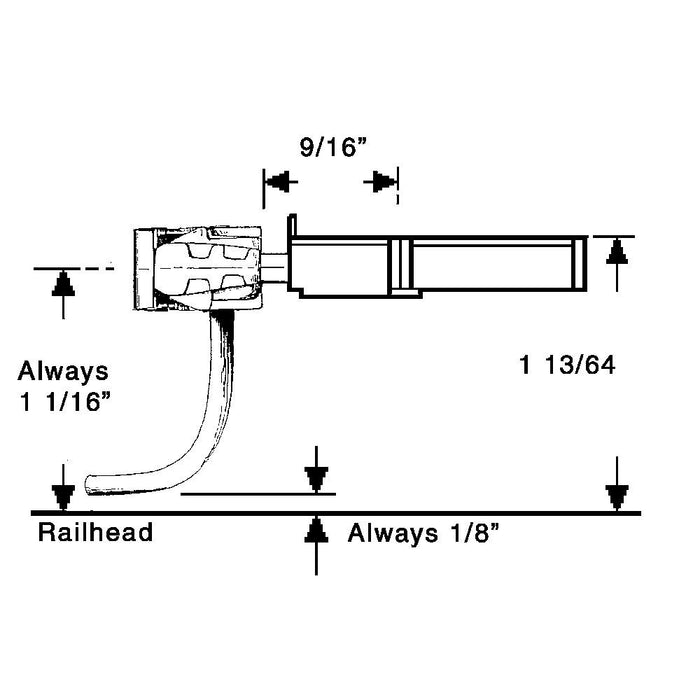

Mounting Specifications:

• Mounting Height - 1 13/64"
• Centerline - 1 1/16"
• Trip Pin Height - 1/8"
• Mounting Holes - #4 Screws are the most commonly used. (Screw length will vary)
