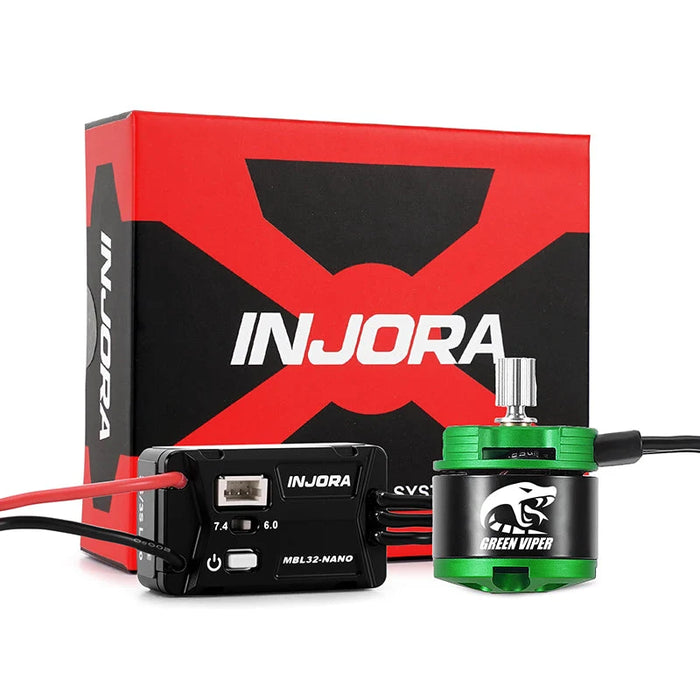

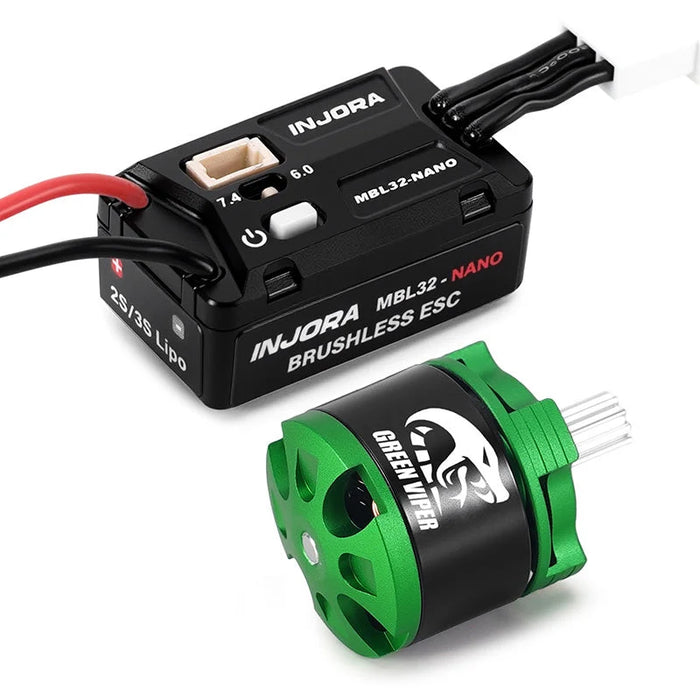

Injora MBL32-NANO-1616 Axial SCX30 MBL32-NANO ESC / Viper 1616 4800Kv Brushless Outrunner Combo

Go faster without going bigger. The Injora MBL32-NANO ESC and Green Viper 1616 Brushless Combo packs whisper-quiet brushless power, ultra-smooth low-speed control, and aggressive wheel speed into a compact package built for precise SCX30 crawling.

The Injora MBL32-NANO Brushless ESC and Green Viper 1616 Motor Combo delivers smooth, precise brushless performance with aggressive power when you need it. The 4800kV 1616 motor provides more wheel speed than the stock SCX30 88T brushed and Injora 1621 brushless motors while taking up less space.

The sensorless brushless system provides smooth, linear low-speed control for technical crawling and powerful high-RPM performance for faster trail driving. Quieter operation, waterproof construction, and ultra-precise throttle response make this combo a serious upgrade for SCX30 drivers.

The nano-sized MBL32-NANO ESC delivers 25A continuous and 45A burst current with an adjustable 6V or 7.4V BEC and PC programmability. Paired with the compact Green Viper 1616, this combo is ideal for tight builds where space is limited without giving up brushless performance.

FEATURES:

• The INJORA MBL32-NANO, based on the AM32 firmware, is meticulously tailored for RC crawlers and is programmable
• Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds
• Runs quieter than brushed systems, with reduced motor noise
• MBL32-NANO features a built-in BEC with adjustable output: 6V / 7.4V
• Waterproof Design for all-weather performance
• Supports PC Programming via USB programmer card
• Multiple Protections: Low-voltage, fail-safe, and rotor lock protection
• 4800KV brushless motor delivers higher speed than the stock SCX30 88T brushed and INJORA 1621 brushless motors
• More compact than the INJORA 1621 brushless motor for easier installation in tight spaces

SPECIFICATIONS:

• ESC:
• Part Number: MBL32-NANO
• Waterproof: Yes
• Continuous Current: 25A
• Peak Current: 45A
• LiPo Cells: 2S LiPo
• BEC Current: 3A
• Output: 6.0V/7.4V adjustable
• Dimensions (L×W×H): 25.5×15×12mm
• Weight: 0.34oz (9.5g)
• Compatible Motors: INJORA 1616/1621/1721
• Motor:
• Model Number: 1616
• Motor Type: Sensorless Brushless Outrunner
• Waterproof: Yes
• Operating Voltage: 7.4V (2S LiPo)
• RPM/Volt: 4800KV
• Motor Slots: 9
• Motor Poles: 12
• No-Load Current (7.4V): 0.8A
• Max Current: 10A
• Motor Connectors: PH2.0 3-pin
• Dimensions: Φ15.5×15.5mm
• Motor Output Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 11T
• Lead Length: 65mm
• Weight: 9.7g

INCLUDES:

• 1 * MBL32-NANO Brushless ESC
• 1 * 1616 Brushless Motor
• 1 * Instruction Manual
