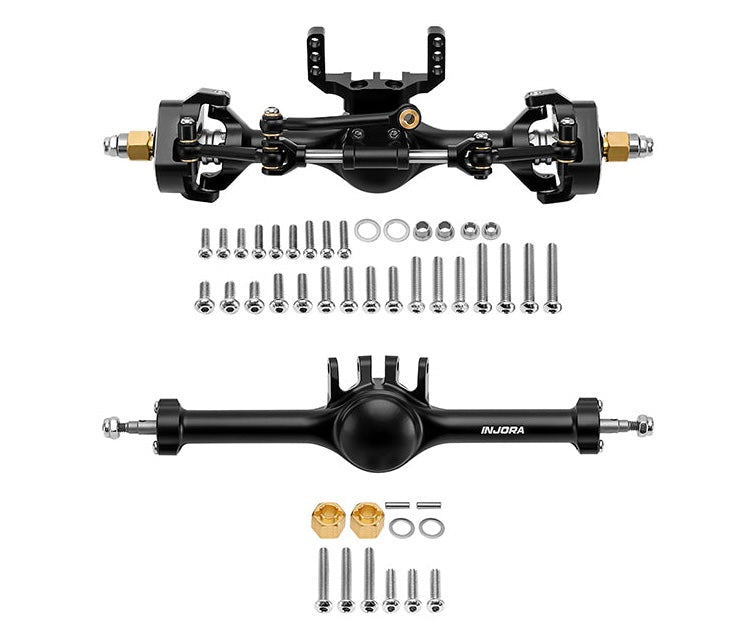

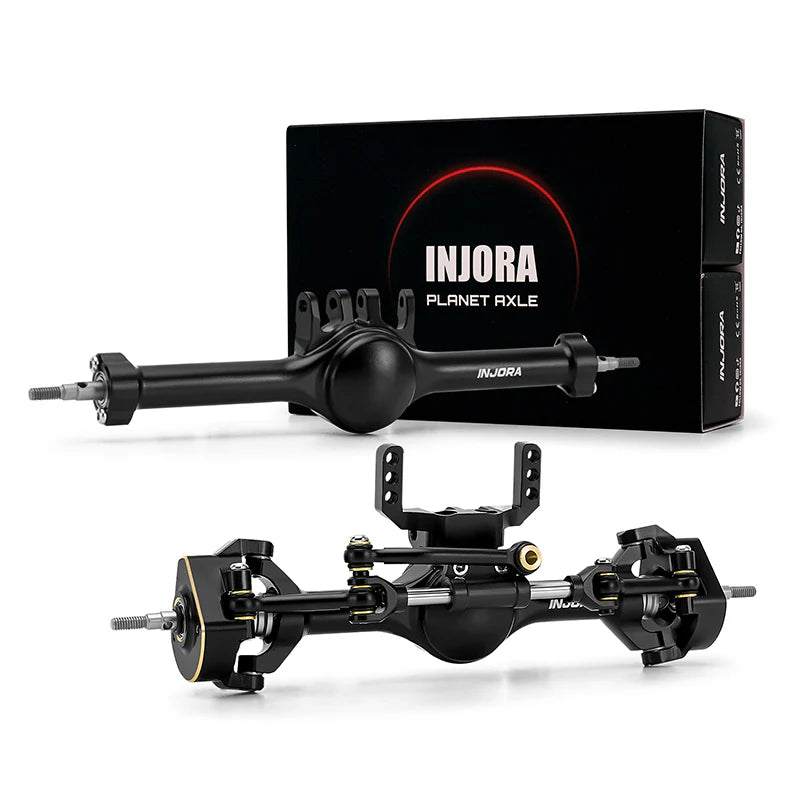

Injora 4M-121BKFR Aluminum Planet Front & Rear Straight Axles Set for Traxxas® TRX-4M®

INJORA +7mm Planet Axles with Double Joint Shafts & Scale Hydraulic Steering for 1/18 TRX4M Upgrade

FEATURES:

• Scale Hydraulic Steering System: Simulated double-ended hydraulic ram for a realistic scale appearance
• Planet-Inspired Axle Design: Planet-shaped differential housing, CNC-machined for maximum realism and precision
• Double Joint Shafts: Minimize outer wheel vibration when turning at extreme angles
• Brass Steering Knuckles: Add weight to the front axle for enhanced traction and climbing ability
• +7mm Extended Width: Widens each side by +7mm to improve stability and control
• 12T & 24T Alloy Steel Helical Gears: Built for smooth meshing and outstanding durability

SPECIFICATIONS:

• Housing Material: Aluminum
• Steering Links Material:  Aluminum
• Steering Knuckles Material: Brass
• Axle Gear Material: 20CrMo Alloy Steel
• Gear Ratio: 24/12=2:1 (Same as Stock)
• Shaft Type: Double Joint Shaft (Stainless Steel)
• Maximum Steering Angle: Approx. 52°
• Front Axle Weight: 92g
• Rear Axle Weight: 38g
• Overall Length: 129.2mm
