Hot Racing HRASJT254 Mod 1 .08 Steel Spur Gear 54T 32P T-MAXX Slash Stampede 4x4

$20.88

Hot Racing HRASJT254 Mod 1 .08 Steel Spur Gear 54T 32P T-MAXX Slash Stampede 4x4

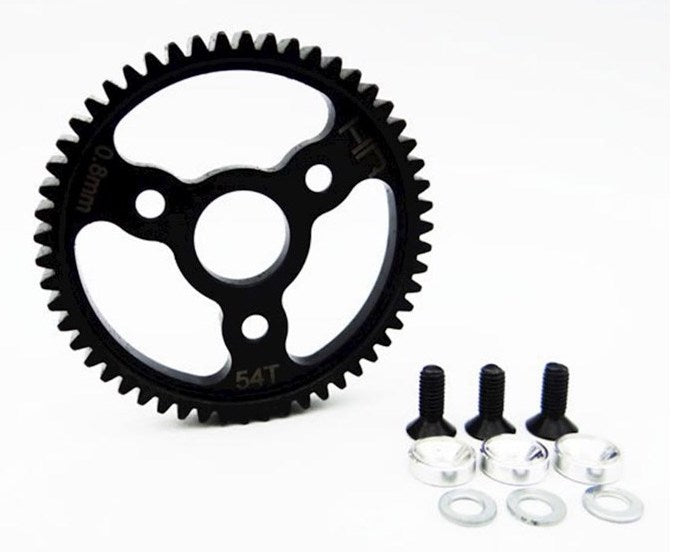

This is the Hot Racing Steel 32 Pitch, 54 Tooth Spur Gear in Silver anodize. Hot Racing 54 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 Traxxas E-Revo, Jato 3.3, T-Maxx 3.3, T-Maxx 2.5R, Summit, Rally VXL, Slash 4X4, and Stampede 4X4.

Features:

  • CNC machined and lightened hardened steel construction
  • Black oxide coating for durability and corrosion resistance
  • Silver-colored countersunk washers

Specifications:

  • Number of Teeth: 54
  • Gear Pitch: 32 pitch (0.8 module)
  • Mounting Holes: 3
  • Tooth Face width: 6mm (0.24 inch)
  • Internal diameter: ~11mm (~0.43 inch)

Includes:

  • 54 tooth 32 pitch spur gear
  • (3) mounting screws
  • (3) silver-colored countersunk washers
  • (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)

Requires:

  • Hardened clutch bell or pinon gear
  • Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.

COMMENTS:

  • For all older T-Maxx use Hot Racing STMX3272T For 4x4 Slash, or 4X4 Stampede (Do NOT work with Center diff version)For Center diff version use SSLF254D
