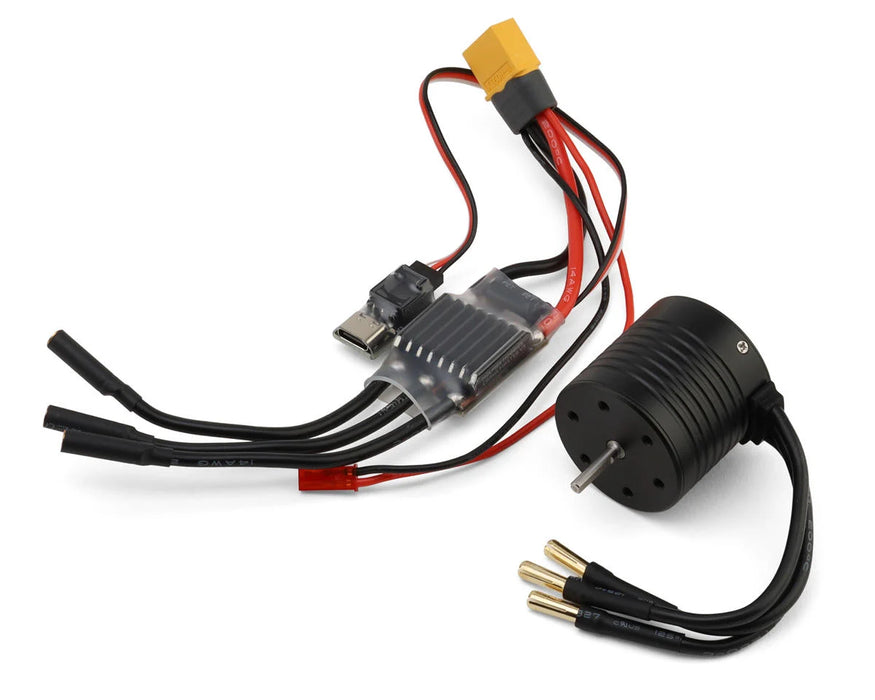

Holmes Hobbies 710100007 CRAWLMASTER 2n1 Brushless Crawler Combo ESC and 540 Stubby 2300Kv 10 Pole Inrunner Motor

The Crawlmaster V3 ESC/Motor Rock Crawling 540 Stubby 10 Pole Inrunner Combo from Holmes Hobbies is a high-performance power system built specifically for serious rock crawling and scale applications. Designed to deliver smooth, precise control, this combo pairs advanced ESC technology with a torque-dense inrunner motor. Its compact and lightweight design makes it ideal for tight chassis setups without sacrificing performance.

The Crawlmaster V3 ESC utilizes 32 bit processing power to deliver ultra-smooth throttle response and highly refined low-speed control. Its sinewave startup technology ensures quiet operation and precise movement, especially in technical crawling situations. With intelligent RPM control and built-in protection features, this ESC offers consistent performance while reducing the risk of damage during demanding use.

The included V2 540 Stubby motor features a 10 pole 12 slot magnetic design and a large diameter rotor for exceptional torque and control. Despite its compact size, it maintains the power of a full 540 stator, providing strong low-speed performance and smooth startup characteristics. This motor is optimized for efficiency, delivering reliable output with minimal energy loss.

Weighing only 186 grams combined, this system is built for lightweight efficiency without compromising durability. The sealed motor design and conformal-coated ESC offer resistance to harsh environments, making it suitable for trail and crawling conditions. Plug-and-play connectors simplify installation, allowing you to get up and running quickly with minimal setup.

FEATURES:

• 32 bit ESC processing
• Sinewave startup technology
• Ultra smooth throttle response
• High torque 10 pole motor
• Compact stubby 540 design
• Lightweight combined system
• Silent motor operation
• Strong drag brake performance
• Plug and play connectors
• Water resistant ESC

SPECIFICATIONS:

• ESC:
  • Suggested Application: 1/10 Crawler
  • Motor Type: Brushless Sensorless
  • Input Voltage: 2-4S (7.4-14.8V) LiPo
  • Continuous Current: 25
  • Burst Current: 40
  • Dimensions (LxWxH): 39x26x11mm
  • Weight: 39g
  • BEC Voltage: 7.4V
  • BEC Continuous Current: 3A
  • Motor Connector: 4mm
  • Battery Connector: XT60
  • Programming: USB
• Motor:
  • Suggested Application: 1/10-1/12 Crawler
  • Size: 540 Stubby (2300Kv)
  • Type: Brushless Sensorless
  • Voltage: 2-4S (7.4-14.8V) LiPo
  • Connector: 4mm Bullet
  • Dimensions (LxW): 1.38x1.42in (35x36mm)
  • Shaft Length: 0.59in (15mm)
  • Shaft Diameter: 1/8in (3.175mm)
  • Weight: 5.15oz (146g)

INCLUDES:

• (1) Crawlmaster V3 ESC
• (1) Crawlmaster V2 540 Stubby 2300Kv Motor
• (1) USB Programmer
